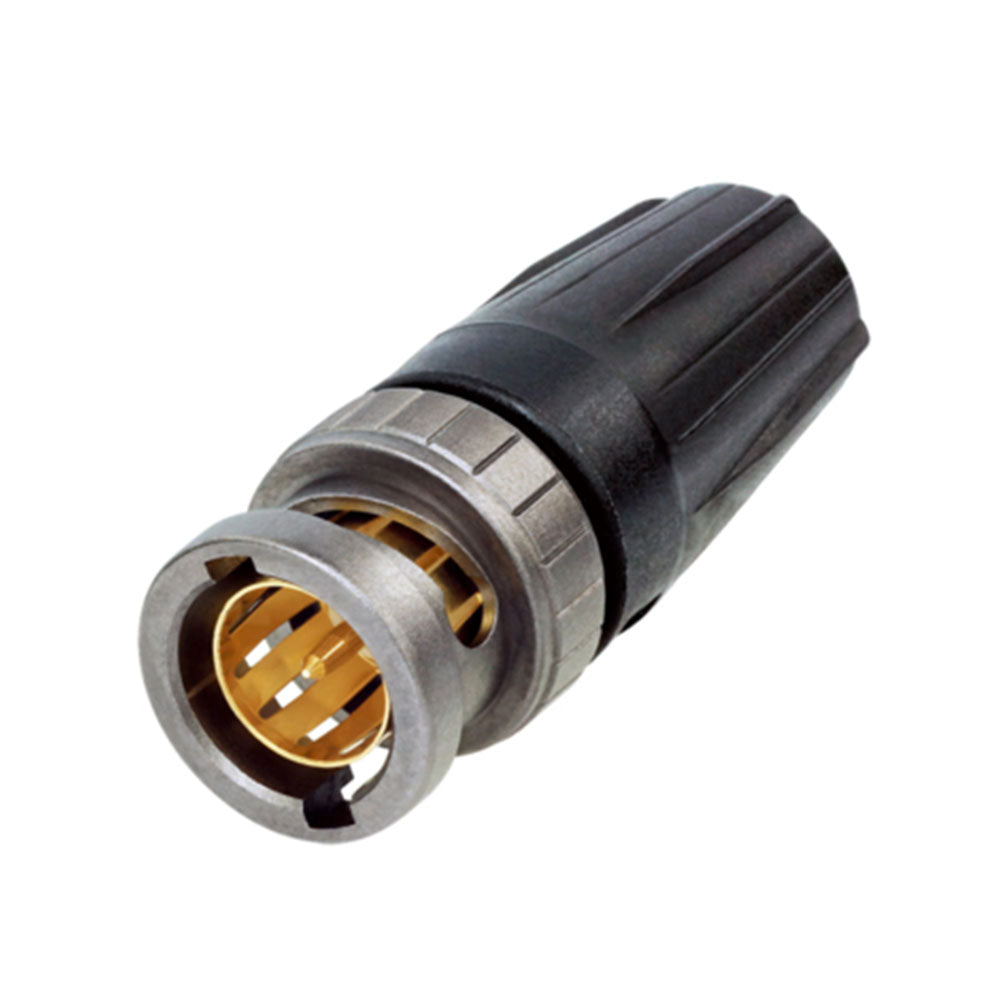

Neutrik NBNC75BDD6X rearTWIST UHD BNC Cable Connector
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.
Features:
- Optimized contact pin and insulator design for UHD-data transmissions
- Proven rearTWIST technology
- Swiss antraloy plating
- Fully compatible with conventional BNC chassis connectors
- Improved return loss values at high frequencies
| Connection Type | BNC 75 ½ |
| Gender | male |
| Contact resistance | ² 3 m½ (inner) |
| Contact resistance | ² 2 m½ (outer) |
| Dielectric strength | 1.5 kVdc |
| Impedance | 75 ½ |
| Insulation resistance | > 5 G½ |
| Rated voltage | < 50 V |
| VSWR | ²1.06 />30 dB up to 6 GHz ²1.13 />24 dB up to 12 GHz ²1.22 />20 dB up to 18 Ghz |
| Cable O.D. | 4.3 mm |
| Cable retention | > 30 N (center) |
| Crimp size | 4.53 Hex crimp (shield) |
| Crimp size (pin) | 1.07 crimp |
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Locking device | Bayonett |
| Cable anchoring | Jacket crimping |
| Contacts | Brass (CuZn35Pb2), 0.2 µm AuCo (center contact) |
| Shell | Brass (CuZn39Pb3) |
| Shell plating | Antraloy |
| Insert | PP |
| Temperature range | - 30 ¡C to +85 ¡C |
| Contact crimpability | Complies with IEC 60803 and IEC 60352-2 |
The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.
Features:
- Optimized contact pin and insulator design for UHD-data transmissions
- Proven rearTWIST technology
- Swiss antraloy plating
- Fully compatible with conventional BNC chassis connectors
- Improved return loss values at high frequencies
| Connection Type | BNC 75 ½ |
| Gender | male |
| Contact resistance | ² 3 m½ (inner) |
| Contact resistance | ² 2 m½ (outer) |
| Dielectric strength | 1.5 kVdc |
| Impedance | 75 ½ |
| Insulation resistance | > 5 G½ |
| Rated voltage | < 50 V |
| VSWR | ²1.06 />30 dB up to 6 GHz ²1.13 />24 dB up to 12 GHz ²1.22 />20 dB up to 18 Ghz |
| Cable O.D. | 4.3 mm |
| Cable retention | > 30 N (center) |
| Crimp size | 4.53 Hex crimp (shield) |
| Crimp size (pin) | 1.07 crimp |
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Locking device | Bayonett |
| Cable anchoring | Jacket crimping |
| Contacts | Brass (CuZn35Pb2), 0.2 µm AuCo (center contact) |
| Shell | Brass (CuZn39Pb3) |
| Shell plating | Antraloy |
| Insert | PP |
| Temperature range | - 30 ¡C to +85 ¡C |
| Contact crimpability | Complies with IEC 60803 and IEC 60352-2 |
