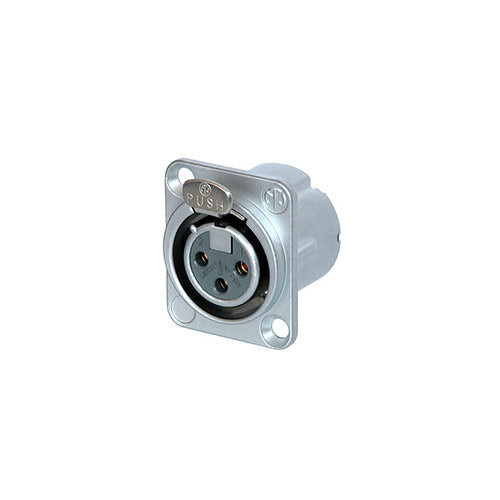

Neutrik NC3FD-LX-HE DLX Series XLR Female Chassis Receptacle (Velour/Gold Contacts)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
3 pole female receptacle, solder cups, velour-chromium housing, machined gold contacts. Exclusive version of standard DLX Series. Valuable velour chromium plating. Extra high temperature resistant insulator material.
Features:
- Extra high temperature resistant insulator material
- Flammability UL94V-0
- Machined female contacts
- Valuable velour chromium plating of shell
- All metal housing offers best overall RF protection and electromagnetic shielding
- New duplex ground contact for excellent contact integrity between chassis and cable connector
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Larger solder contacts for easier termination
- Optional connection to easily join pin 1 to chassis ground
- D-style housing provides installation compatibility with industry standard D mounting dimensions
| Connection Type | XLR |
| Gender | female |
| Capacitance between contacts | 4 pF |
| Contact resistance | 5 m (inner) |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 G (initial) |
| Rated current per contact | 16 A |
| Rated voltage | < 50 V |
| Insertion force | 20 N |
| Withdrawal force | 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | max. 2.5 mm_ |
| Wiresize | max. 14 AWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Chassis shape | D |
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Brass (CuZn35Pb2) |
| Insert | Polyphenylene Sulfide (PPS 40% GR) |
| Locking element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Velour Chromium |
| Flammability | UL 94 V-0 |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80 ¡C |
