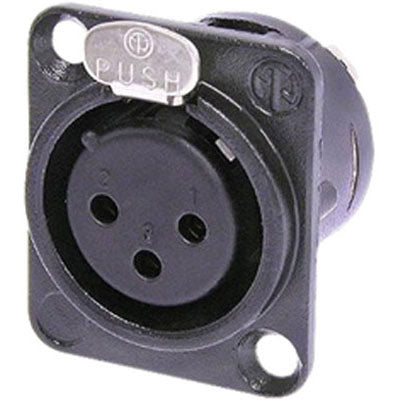

Neutrik NC3FDL-B-1 XLR Female D Series Receptacle (Black/Gold Contacts
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Neutrik NC3FDL-B-1 XLR Female D Series Receptacle (Black/Gold Contacts
Sale price$5.03
Regular price$5.62
Description
Universal D-size metal body XLR panel mount series. UL recognized component.
3 pole female receptacle, solder cups, black metal housing, gold contacts
Features:
- Robust "D" metal shell
- Standardized D sized 24 mm panel cutout
- Solder cups on 3 - 7 pole version
| Product | |
| Connector Type | XLR |
| Gender | female |
| Capacitance between contacts | ≤ 4ÊpF |
| Contact resistance | ≤ 5ÊmΩ |
| Dielectric strength | 1,5ÊkVdc |
| Insulation resistance | > 2ÊGΩÊ(initial) |
| Insulation resistance | > 1ÊGΩÊ(after damp heat test) |
| Rated current per contact | 16ÊA |
| Rated voltage | 50ÊV |
| Insertion force | ≤ 20ÊN |
| Withdrawal force | ≤ 20ÊN |
| Lifetime | > 1000Êmating cycles |
| Wire size | max. 2.5Êmm_ |
| Wire size | max. 14ÊAWG |
| Wiring | Solder contacts |
| Locking device | latch lock |
| Mounting direction | front / rear |
| Chassis shape | D |
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Bronze (CuSn8) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Approvals | UL |
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80Ê¡C |
Universal D-size metal body XLR panel mount series. UL recognized component.
3 pole female receptacle, solder cups, black metal housing, gold contacts
Features:
- Robust "D" metal shell
- Standardized D sized 24 mm panel cutout
- Solder cups on 3 - 7 pole version
| Product | |
| Connector Type | XLR |
| Gender | female |
| Capacitance between contacts | ≤ 4ÊpF |
| Contact resistance | ≤ 5ÊmΩ |
| Dielectric strength | 1,5ÊkVdc |
| Insulation resistance | > 2ÊGΩÊ(initial) |
| Insulation resistance | > 1ÊGΩÊ(after damp heat test) |
| Rated current per contact | 16ÊA |
| Rated voltage | 50ÊV |
| Insertion force | ≤ 20ÊN |
| Withdrawal force | ≤ 20ÊN |
| Lifetime | > 1000Êmating cycles |
| Wire size | max. 2.5Êmm_ |
| Wire size | max. 14ÊAWG |
| Wiring | Solder contacts |
| Locking device | latch lock |
| Mounting direction | front / rear |
| Chassis shape | D |
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Bronze (CuSn8) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Approvals | UL |
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80Ê¡C |
