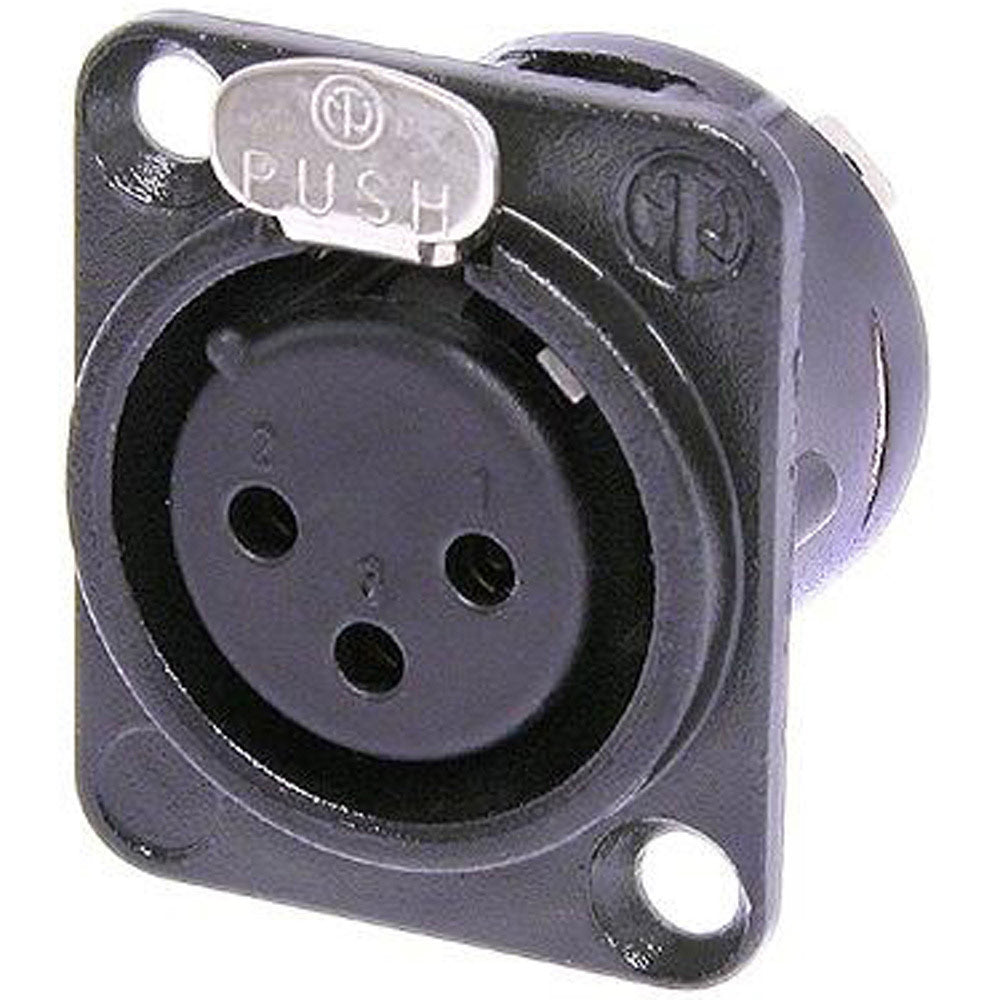

Neutrik NC3FDLBAG1 XLR3F Panel Receptacle (Black with Silver Contacts)


  • Dale #:

    NEUT-NC3FDLBAG1
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm

Description

3 pole female receptacle, solder cups, black metal housing, silver contacts Universal D-size metal body XLR panel mount series. UL recognized component.Features Robust "D" metal shell Standardized D sized 24 mm panel cutout Solder cups on 3 - 7 pole version Read More

Free Shipping (orders over $50)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

3 pole female receptacle, solder cups, black metal housing, silver contacts Universal D-size metal body XLR panel mount series. UL recognized component.

Features

  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • Solder cups on 3 - 7 pole version

More +

Product Specs

Product
TitleNC3FD-L-BAG-1
Connection Type XLR
Genderfemale
Electrical
Capacitance between contacts= 4 pF
Contact resistance= 5 mO (inner)
Dielectric strength1,5 kVdc
Insulation resistance> 2 GO (initial)
Rated current per contact16 A
Rated voltage50 V
Mechanical
Insertion force = 20 N
Withdrawal force= 20 N
Lifetime> 1000 mating cycles
Wiresizemax. 2.5 mm²
Wiresizemax. 14 AWG
WiringSolder contacts
Locking deviceLatch lock
Chassis shapeD
Material
Contact plating2 µm Ag over 2 µm Ni
ContactsBronze (CuSn8)
InsertPolyamide (PA 6.6 30 % GR)
ShellZinc diecast (ZnAl4Cu1)
Shell platingBlack chromium
Environmental
ApprovalsUL
FlammabilityUL 94 HB
Standard complianceIEC 61076-2-103
Protection classIP 40
SolderabilityComplies with IEC 68-2-20
Temperature range-30 °C to +80 °C
