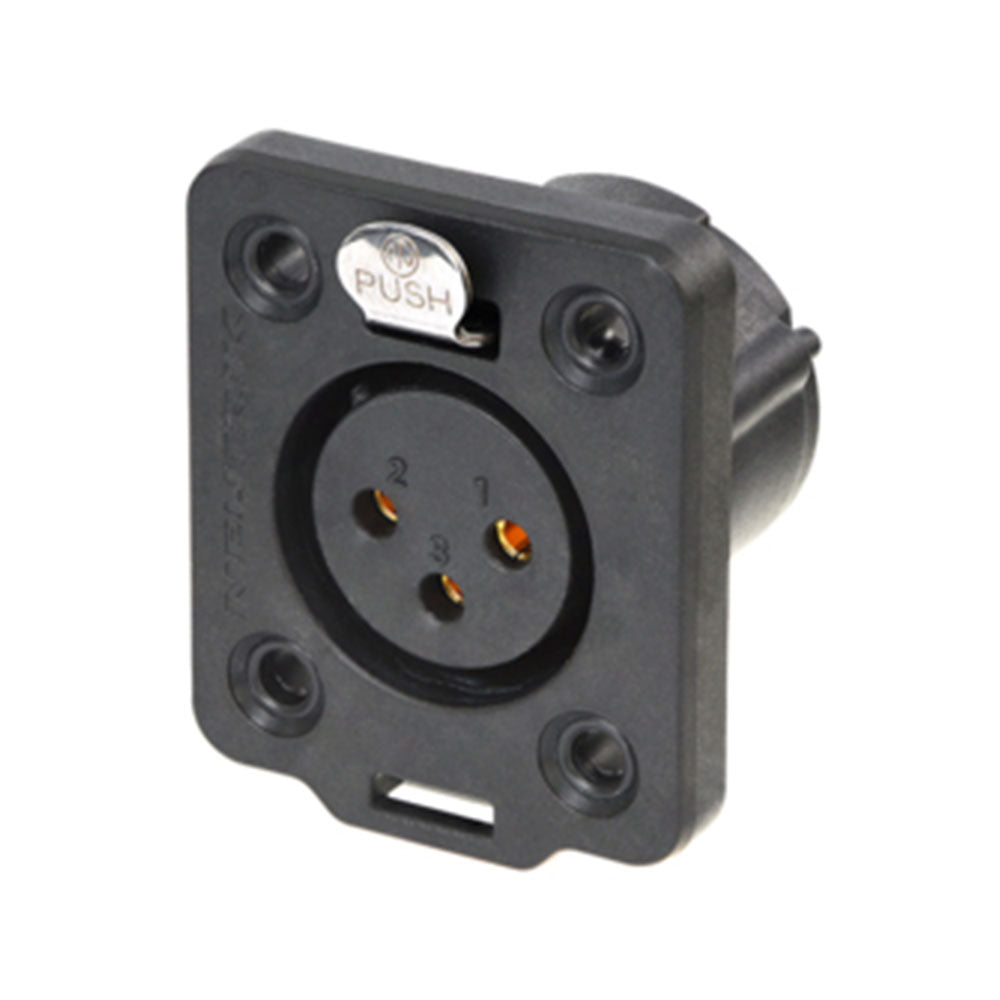

Neutrik NC3FDX-TOP Total Outdoor Protection Chassis Mount XLR Female Connector
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
3 pole female chassis connector, TRUE OUTDOOR PROTECTION (TOP).
The X-TOP series is a "heavy-duty" XLR chassis connector for outdoor use. Outdoor protected by mating with related cable connector of the XLR TOP range (IP65 and UL50E). Gold contacts are standard.
Features:
- Heavy-duty sealed XLR connector range for harsh and demanding environment
- Outdoor protection according to IP65 and UL50E (in combination with a TOP range counterpart)
- Uses high impact UV-resistant materials
- Maintains sealing when in use and when disconnected
| Connection Type | XLR |
| Gender | female |
| Capacitance between contacts | ² 4 pF |
| Contact resistance | ² 5 m½ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 G½ (initial) |
| Rated current per contact | 16 A |
| Rated voltage | < 50 V |
| Insertion force | ² 20 N |
| Withdrawal force | ² 20 N |
| Lifetime | > 5000 mating cycles |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Mounting direction | Front mounting |
| Chassis shape | D |
| Contact plating | 0.2 µm Au over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Stainless steel |
| Gasket | TPE |
| Shell | Polyamide (PA 6.6 30 % GR) |
| Flammability | UL94 V-0 |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP65, UL50E |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80 ¡C |
