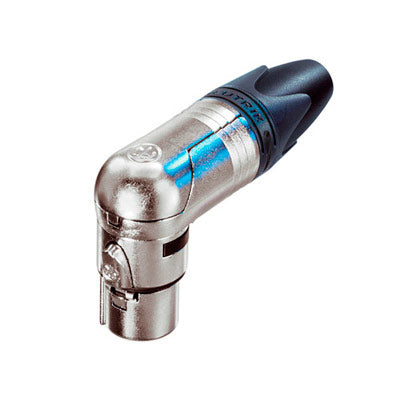

Neutrik NC3FRX XX Series 3-Pin XLR Right Angle Female Cable Connector - Nickel


  • Dale #:

    NEUT-NC3FRX
  • Availability:

    In Stock
  • Available for immediate shipment or pick-up from our Jamaica, NY warehouse. In-store pick-up is available Monday through Friday 8:30 am to 5:30 pm.

Description

The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.Features: Extra slim right-angle connector 5 selectable ... Read More

Free Shipping (orders over $99)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features:
  • Extra slim right-angle connector
  • 5 selectable cable outlet positions
  • Unique cage design of female contact for low contact resistance and high integrity
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Coloured rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy

More +

Product Specs

Product
Connector TypeXLR
Genderfemale
Electrical
Capacitance between contacts<= 4 pF
Contact resistance<= 3 mOhms
Dielectric strength 1,5 kVdc
Insulation resistance> 2 GOhms (initial); > 1 GOhms (after damp heat test)
Rated current per contact16 A
Rated voltage50 V
Mechanical
Cable O.D3.5 - 8.0 mm
Insertion force<= 20 N
Withdrawal force<= 20 N
Lifetime> 1000 mating cycles
Wire sizemax. 2.5 mm²; max. 14 AWG
WiringSolder contacts
RW / StraightYes
Locking devicelatch lock
Material
BootPolyuretan
BushingPolyamide (PA 6 15% GR)
Contact plating2 µm Ag
ContactsBronze (CuSn8)
InsertPolyamide (PA 6.6 30 % GR)
Locking elementZinc diecast (ZnAl4Cu1) / Ck 67 (spring)
ShellZinc diecast (ZnAl4Cu1)
Shell platingNickel
Strain reliefPolyacetal (POM)
Environmental
FlammabilityUL 94 HB
Standard complianceIEC 61076-2-103
Protection classIP 40
SolderabilityComplies with IEC 68-2-20
Temperature range-30 °C to +80 °C

More +
