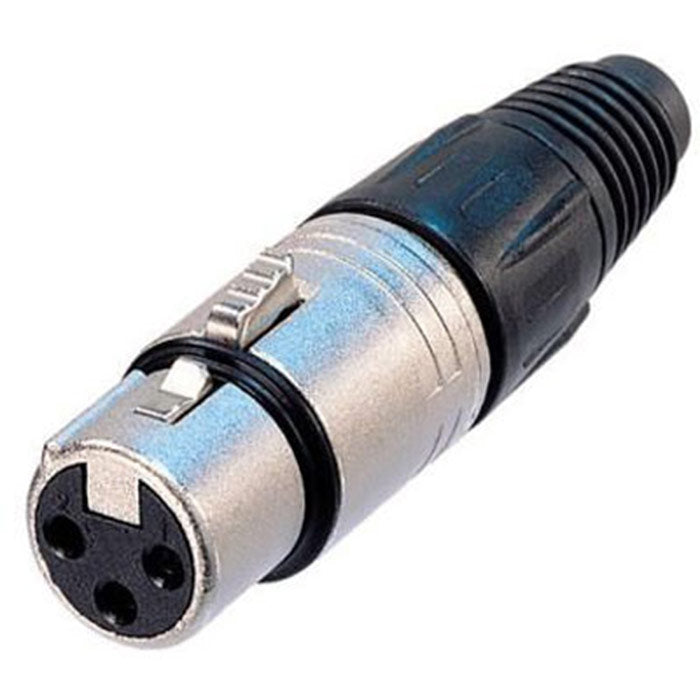

Neutrik NC3FX Female 3-Pin XLR Connector
Dale #:
NEUT-NC3FXAvailability:
In StockAvailable for immediate shipment or pick-up from our Jamaica, NY warehouse. In-store pick-up is available Monday through Friday 8:30 am to 5:30 pm.
Description
The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.3 pole female cable connector with Nickel housing and s... Read MoreRetail Price: $4.33 Our Price: $3.71
Free Shipping (orders over $99)
Suggested Accessories
Description
The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.
3 pole female cable connector with Nickel housing and silver contacts.
Features:
- Rugged zinc diecast shell, long lasting and durable
- Chuck type strain relief system for secure clamping of cables
- Boot with rubber gland gives high protection against bending stresses
- Coloured rings and boots available for coding and marking
- UL recognized components
More +
Product Specs
| Product | |
| Connector Type | XLR |
| Gender | female |
| Electrical | |
| Capacitance between contacts | ≤ 4ÊpF |
| Contact resistance | ≤ 3Êmohms |
| Dielectric strength | 1,5ÊkVdc |
| Insulation resistance | > 2ÊGohmsÊ(initial) |
| Insulation resistance | > 1ÊGohmsÊ(after damp heat test) |
| Rated current per contact | 16ÊA |
| Rated voltage | 50ÊV |
| Mechanical | |
| Cable O.D. | 3.5 - 8.0Êmm |
| Insertion force | ≤ 20ÊN |
| Withdrawal force | ≤ 20ÊN |
| Lifetime | > 1000Êmating cycles |
| Wire size | max. 2.5Êmm_ |
| Wire size | max. 14ÊAWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Material | |
| Boot | Polyuretan |
| Bushing | Polyamide (PA6 15% GR) |
| Contact plating | 2 µm Ag over 2 µm Ni |
| Contacts | Bronze (CuSn8) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | St3K32 (latch) / Ck 67 (spring) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Approvals | UL |
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80Ê¡C |
