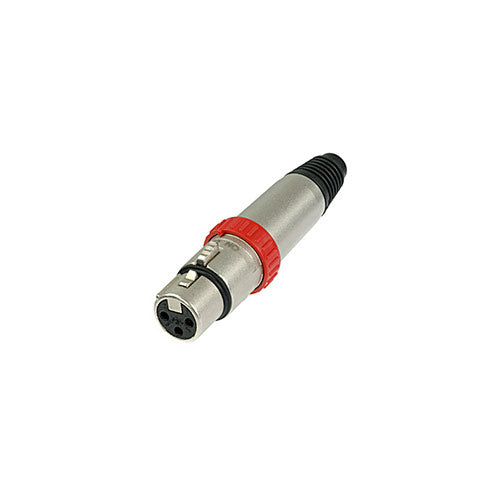

Neutrik NC3FXS Cable Mount XLRF Connector with Noiseless On/Off Switch
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Neutrik NC3FXS Cable Mount XLRF Connector with Noiseless On/Off Switch
Sale price$13.15
Regular price$14.68
Description
3 pole female cable connector, Nickel housing. FX cable connector with noiseless ON-OFF switch short-circuiting contacts 2+3. For use with a microphone without switch.
Features:
- Built in noiseless ON-OFF switch short-circuiting contacts 2 + 3
- For use on a microphone without switch
- Rugged zinc diecast shell, long lasting and durable
- Rugged metal boot
- Chuck type strain relief system for secure clamping of cables
- Boot with rubber gland gives high protection against bending stresses
| Connection Type | XLR |
| Gender | female |
| Capacitance between contacts | 4 pF |
| Contact resistance | 3 m (inner) |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 G (initial) |
| Rated current per contact | 16 A |
| Rated voltage | < 50 V |
| Cable O.D. | 3.5 - 7.0 mm |
| Insertion force | 20 N |
| Withdrawal force | 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | max. 2.5 mm_ |
| Wiresize | max. 14 AWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Boot | Polyurethane |
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Bronze (CuSn6) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | St3K32 (latch) / Ck 67 (spring) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Strain relief | Polyacetal (POM) |
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80 ¡C |
