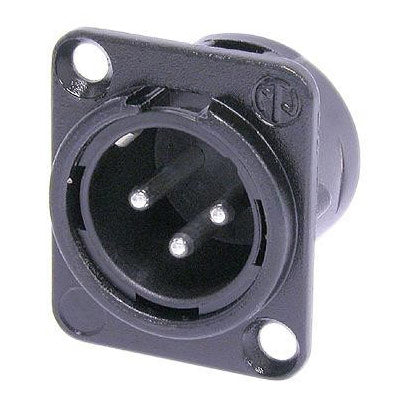

Neutrik NC3MD-L-BAG-1 DL1 Series 3 Pin Male Latchless XLR Connector - Black/Silver


  • Dale #:

    NEUT-NC3MDLBAG1
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm

Description

Universal D-size metal body XLR panel mount series. UL recognized component. 3 pole male receptacle, solder cups, black metal housing, silver contacts.Features: Robust D metal shell Standardized D sized 24 mm panel cutout Solder cups on 3 - 7 pole version Universal metal-bodied housing common to ... Read More

Free Shipping (orders over $50)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Universal D-size metal body XLR panel mount series. UL recognized component. 3 pole male receptacle, solder cups, black metal housing, silver contacts.

Features:
  • Robust D metal shell
  • Standardized D sized 24 mm panel cutout
  • Solder cups on 3 - 7 pole version
Universal metal-bodied housing common to most Neutrik connector ranges allows simpler metalworking and more flexibility of use. Panel cutout 24mm, connector can be mounted front or rear of panel. Available in 3, 4, 5, 6 and 7-pin configurations. Metal body offers RF protection. The NC3FD-L-0 is a latchless version of the NC3FDL. Standard connectors have countersunk clearance mounting holes to accept M3 bolts. The special ‘M3' version of the connector has an M3 tapped thread, for speed of mounting. This obviously means that they can only be used rear-of-panel mounted. B suffix = black shell, gold plated contacts, BAG = black shell with silver plated contacts.

More +

Product Specs

Product
Connector TypeXLR
Gendermale
Electrical
Capacitance between contacts≤ 4 pF
Contact resistance≤ 5 mohms
Dielectric strength1,5 kVdc
Insulation resistance> 2 Gohms (initial)
Insulation resistance> 1 Gohms (after damp heat test)
Rated current per contact16 A
Rated voltage50 V
Mechanical
Insertion force≤ 20 N
Withdrawal force≤ 20 N
Lifetime> 1000 mating cycles
WiringSolder contacts
Locking devicelatch lock
Mounting directionfront
Chassis shapeD
Material
Contact plating2 µm Ag over 2 µm Ni
ContactsBrass (CuZn35Pb2)
InsertPolyamide (PA 6.6 30 % GR)
Locking elementSteel Ck67
ShellZinc diecast (ZnAl4Cu1)
Shell platingBlack chromium
Environmental
ApprovalsUL
FlammabilityUL 94 HB
Protection classIP 40
SolderabilityComplies with IEC 68-2-20
Temperature range-30 °C to +80 °C
