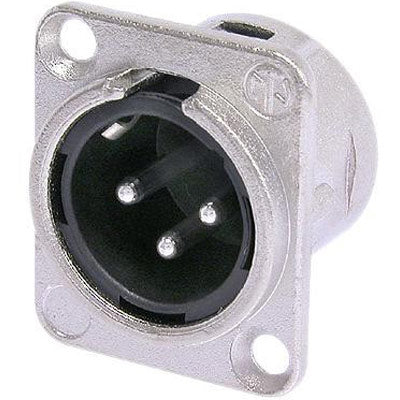

Neutrik NC3MD-L D Series 3 Pin Male XLR Receptacle with Silver Contacts - Nickel
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Neutrik NC3MD-L D Series 3 Pin Male XLR Receptacle with Silver Contacts - Nickel
Sale price$6.53
Regular price$7.62
Description
Universal D-size metal body XLR panel mount series. UL recognized component. 3 pole male receptacle, solder contacts, Nickel housing, silver contacts.
Features:- Robust D metal shell
- Standardized D sized 24 mm panel cutout
- Solder cups on 3 - 7 pole version
| Product | |
| Connector Type | XLR |
| Gender | male |
| Electrical | |
| Capacitance between contacts | ≤ 4 pF |
| Contact resistance | ≤ 5 mohms |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 2 Gohms (initial) |
| Insulation resistance | > 1 Gohms (after damp heat test) |
| Rated current per contact | 16 A |
| Rated voltage | 50 V |
| Mechanical | |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiring | Solder contacts |
| Locking device | latch lock |
| Mounting direction | front |
| Chassis shape | D |
| Material | |
| Contact plating | 2 µm Ag over 2 µm Ni |
| Contacts | Brass (CuZn35Pb2) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
Universal D-size metal body XLR panel mount series. UL recognized component. 3 pole male receptacle, solder contacts, Nickel housing, silver contacts.
Features:- Robust D metal shell
- Standardized D sized 24 mm panel cutout
- Solder cups on 3 - 7 pole version
| Product | |
| Connector Type | XLR |
| Gender | male |
| Electrical | |
| Capacitance between contacts | ≤ 4 pF |
| Contact resistance | ≤ 5 mohms |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 2 Gohms (initial) |
| Insulation resistance | > 1 Gohms (after damp heat test) |
| Rated current per contact | 16 A |
| Rated voltage | 50 V |
| Mechanical | |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiring | Solder contacts |
| Locking device | latch lock |
| Mounting direction | front |
| Chassis shape | D |
| Material | |
| Contact plating | 2 µm Ag over 2 µm Ni |
| Contacts | Brass (CuZn35Pb2) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
