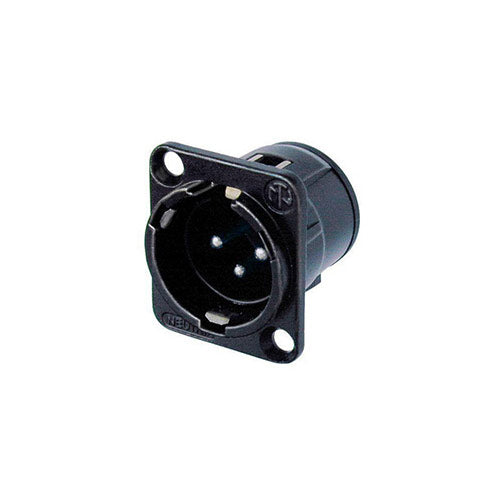

Neutrik NC3MD-V-BAG PCB Mount XLR Male Receptacle (Black/Silver Contacts)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
3 pole male receptacle, vertical PCB mount, black metal housing, silver contacts. Universal D-size metal body XLR panel mount series for pcb mount applications. Insert is removable from shell for ease assembling. UL recognized component.
Features:
- D-shape metal shell
- Optimal RF protection using 3 shield contacts
- Insert is removable from rear of connector and locked into place by internal latch - permitting assembling and testing of pcb before assembling into housing
- Front or rear panel mount
| Connection Type | XLR |
| Gender | male |
| Capacitance between contacts | 4 pF |
| Contact resistance | 5 m (inner) |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 G (initial) |
| Rated current per contact | 6 A |
| Rated voltage | < 50 V |
| Insertion force | 20 N |
| Withdrawal force | 20 N |
| Lifetime | > 1000 mating cycles |
| Wiring | vertical PCB mount |
| Locking device | Latch lock |
| Mounting direction | rear |
| Chassis shape | D |
| Contact plating | 2 µm Ag over 2 µm Ni |
| Contacts | Brass (CuZn35Pb2) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Environmental Approvals | UL |
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80 ¡C |
