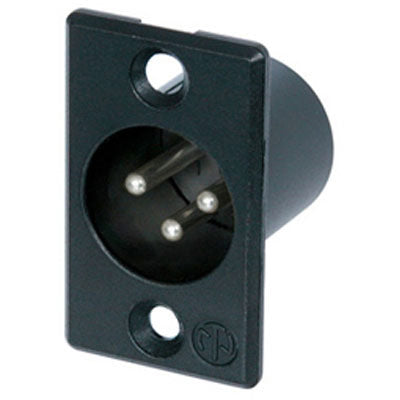

Neutrik NC3MP-Bag Receptacle P Series - 3 Pin Male - Solder Cups - Black/Silver
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Neutrik NC3MP-Bag Receptacle P Series - 3 Pin Male - Solder Cups - Black/Silver
Sale price$4.46
Regular price$4.98
Description
Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring. 3 pole male receptacle, solder contacts, black metal housing, silver contacts.
Features
- Smallest available hard wiring receptacles with large solder cups
- Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32
| Connector Type | XLR |
| Gender | male |
| Electrical | |
| Capacitance between contacts | <=4 pF |
| Contact resistance | <=5 mohms |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 2 Gohms (initial) |
| Insulation resistance | > 1 Gohms (after damp heat test) |
| Rated current per contact | 16 A |
| Rated voltage | 50 V |
| Mechanical | |
| Insertion force | <=20 N |
| Withdrawal force | <=20 N |
| Lifetime | > 1000 mating cycles |
| Wiring | Solder contacts |
| Locking device | latch lock |
| Mounting direction | front |
| Chassis shape | P |
| Material | |
| Contact plating | 2 µm Ag over 2 µm Ni |
| Contacts | Brass (CuZn35Pb2) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Environmental | |
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80 ¡C |
Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring. 3 pole male receptacle, solder contacts, black metal housing, silver contacts.
Features
- Smallest available hard wiring receptacles with large solder cups
- Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32
| Connector Type | XLR |
| Gender | male |
| Electrical | |
| Capacitance between contacts | <=4 pF |
| Contact resistance | <=5 mohms |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 2 Gohms (initial) |
| Insulation resistance | > 1 Gohms (after damp heat test) |
| Rated current per contact | 16 A |
| Rated voltage | 50 V |
| Mechanical | |
| Insertion force | <=20 N |
| Withdrawal force | <=20 N |
| Lifetime | > 1000 mating cycles |
| Wiring | Solder contacts |
| Locking device | latch lock |
| Mounting direction | front |
| Chassis shape | P |
| Material | |
| Contact plating | 2 µm Ag over 2 µm Ni |
| Contacts | Brass (CuZn35Pb2) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Environmental | |
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80 ¡C |
