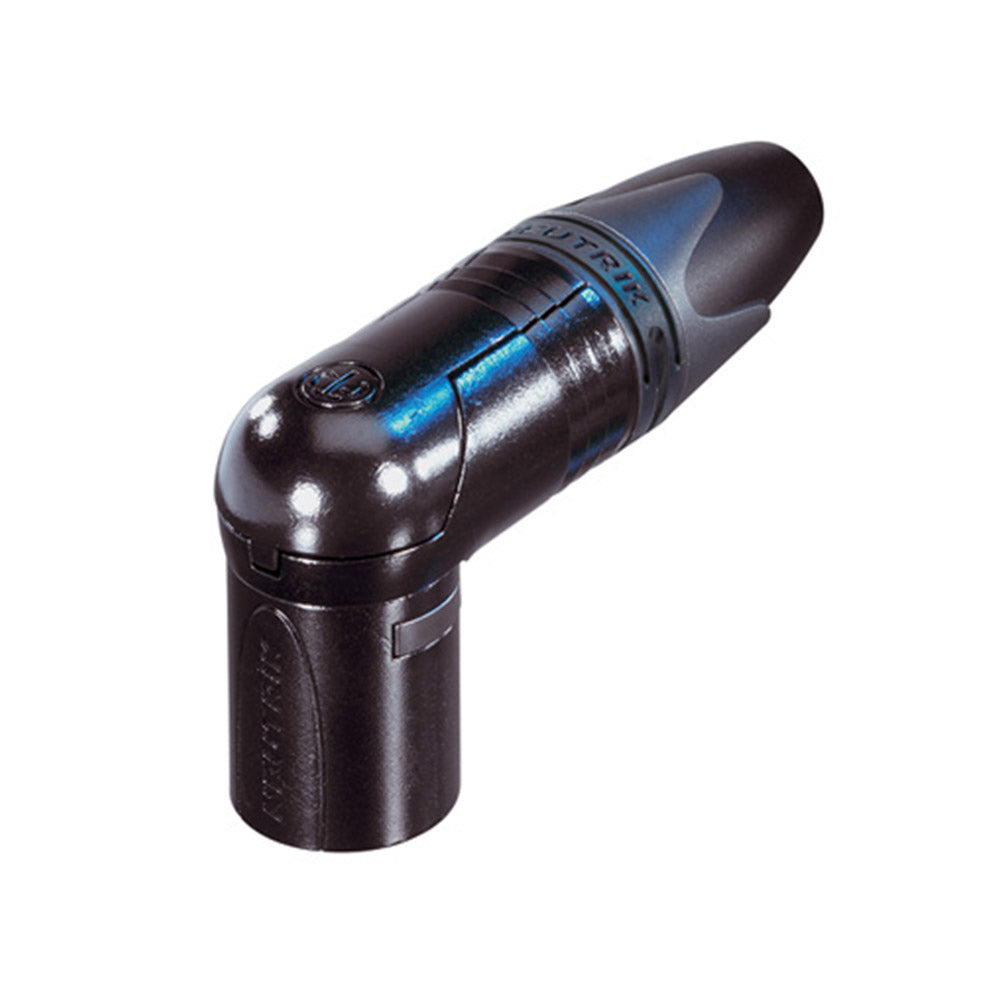

Neutrik NC3MRX-B RX Series 3 Pin Male Right Angle Cable Connector (Black / Gold Contacts)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
3 pole right angle male cable connector, black metal housing, gold contacts
The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Features:
- Extra slim right-angle connector
- 7 selectable cable outlet positions
- Male connector with improved locking recess without "window", more stringent housing increases durability
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Coloured rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
| TECHNICAL DATA: Electrical : | |
| Number of contacts | 3 - 7 |
| Contact resistance | = 3 m |
| Insulation resistance - initial | > 2 G , after damp heat test:> 1 G |
| Dielectric strength | 1500 V dc |
| Rated current | |
| 3 pole | 16 A |
| 4 pole | 10 A |
| 5 and 6 pole | 7.5 A |
| 7 pole | 5 A |
| AWG | |
| 3 pole | 2.5 mm_/14 AWG |
| 4 pole | 1.5 mm_/16 AWG |
| 5 und 6 pole | 1.0 mm_/18 AWG |
| 7 pole | 1.0 mm_/18 AWG |
| Capacitance between contacts | |
| 3 pole | = 4 pF |
| 4 pole | = 7 pF |
| 5 und 6 pole | = 7 pF |
| 7 pole | = 9 pF |
| Mechanical | |
| Lifetime | >1000 cycles |
| Insertion / withdrawal force | = 20 N |
| Cable O.D. range | 4.0 mm - 8.0 mm |
| Materials | |
| Shell | ZnAl4Cu1, gal Ni or black Cr over Cu plating |
| Insert | PA 6.6 30% GR (glass reinforced) |
| Contacts | - female (3 pole): CuSn6 - female (4-7pole) / male: CuZn39Pb3 |
| Contact surface | gal 2 µm Ag or gal 0.2 µm Au hard alloy over 2 µm Ni |
| Latch lock (female) | St3K32 |
| Strain-relief clamp | POM |
| Antikink bushing | PUR |
| Environmental | |
| Temperature range | -30¡ C to + 80¡ C |
| Flammability | UL 94HB |
| Solderability | complies with IEC 68-2-20 |
| Compatibility / Remarks | |
| Compatibility | IEC tentative standard / Switchcraft¨ QG (except 6 pole) / Cannon XLR |
3 pole right angle male cable connector, black metal housing, gold contacts
The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Features:
- Extra slim right-angle connector
- 7 selectable cable outlet positions
- Male connector with improved locking recess without "window", more stringent housing increases durability
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Coloured rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
| TECHNICAL DATA: Electrical : | |
| Number of contacts | 3 - 7 |
| Contact resistance | = 3 m |
| Insulation resistance - initial | > 2 G , after damp heat test:> 1 G |
| Dielectric strength | 1500 V dc |
| Rated current | |
| 3 pole | 16 A |
| 4 pole | 10 A |
| 5 and 6 pole | 7.5 A |
| 7 pole | 5 A |
| AWG | |
| 3 pole | 2.5 mm_/14 AWG |
| 4 pole | 1.5 mm_/16 AWG |
| 5 und 6 pole | 1.0 mm_/18 AWG |
| 7 pole | 1.0 mm_/18 AWG |
| Capacitance between contacts | |
| 3 pole | = 4 pF |
| 4 pole | = 7 pF |
| 5 und 6 pole | = 7 pF |
| 7 pole | = 9 pF |
| Mechanical | |
| Lifetime | >1000 cycles |
| Insertion / withdrawal force | = 20 N |
| Cable O.D. range | 4.0 mm - 8.0 mm |
| Materials | |
| Shell | ZnAl4Cu1, gal Ni or black Cr over Cu plating |
| Insert | PA 6.6 30% GR (glass reinforced) |
| Contacts | - female (3 pole): CuSn6 - female (4-7pole) / male: CuZn39Pb3 |
| Contact surface | gal 2 µm Ag or gal 0.2 µm Au hard alloy over 2 µm Ni |
| Latch lock (female) | St3K32 |
| Strain-relief clamp | POM |
| Antikink bushing | PUR |
| Environmental | |
| Temperature range | -30¡ C to + 80¡ C |
| Flammability | UL 94HB |
| Solderability | complies with IEC 68-2-20 |
| Compatibility / Remarks | |
| Compatibility | IEC tentative standard / Switchcraft¨ QG (except 6 pole) / Cannon XLR |
