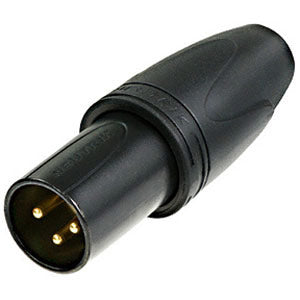

Neutrik NC3MXX-HD-B-D 3-Pin Male XLR Cable Connector - Black/Gold


  • Dale #:

    NEUT-NC3MXXHDBD
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm

Description

3 pole male cable connector, "heavy duty", black housing The XX-HD Series is a "heavy duty" XLR cable connector for outdoor use. All metal design, dust and water protected according to IP 67 by mating with related XX-HD cable connector or MPR-HD chassis connector. Gold contacts are standard.Featu... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

3 pole male cable connector, "heavy duty", black housing The XX-HD Series is a "heavy duty" XLR cable connector for outdoor use. All metal design, dust and water protected according to IP 67 by mating with related XX-HD cable connector or MPR-HD chassis connector. Gold contacts are standard.

Features

  • "Heavy duty" cable connector for outdoor use
  • Rubber sealing jacket protects against water ingress and mechanical shock
  • Dust and water protected according IP 67 in mated condition
  • NC3MXX-HD* mates with NC3FXX-HD* cable connector
  • Gold contacts
  • Chuck type strain relief system for secure clamping of cables
  • Rugged zinc diecast shell, longlasting and dependable

More +

Product Specs

Connection TypeXLR
Gendermale
Electrical
Capacitance between contacts≤ 4 pF
Contact resistance≤ 3 mΩ (inner)
Dielectric strength1,5 kVdc
Insulation resistance> 10 GΩ (initial)
Rated current per contact16 A
Rated voltage50 V
Mechanical
Cable O.D.3.5 - 8.0 mm
Insertion force≤ 20 N
Withdrawal force≤ 20 N
Lifetime> 1000 mating cycles
Wiresizemax. 2.5 mm²
WiringSolder contacts
Locking deviceLatch lock
Sealing jacketEPDM
Material
BootPolyurethan
Contact plating0.2 µm Au hard alloy over 2 µm Ni
ContactsBrass (CuZn39Pb3)
InsertPolyamide (PA 6.6 30 % GR)
Locking elementZinc diecast (ZnAl4Cu1) / Ck 67 (spring)
ShellZinc diecast (ZnAl4Cu1)
Shell platingBlack chromium
Strain reliefPolyacetal (POM)
Environmental
FlammabilityUL 94 HB
Standard complianceIEC 61076-2-103
SolderabilityComplies with IEC 68-2-20
Temperature range-30 °C to +80 °C

More +
