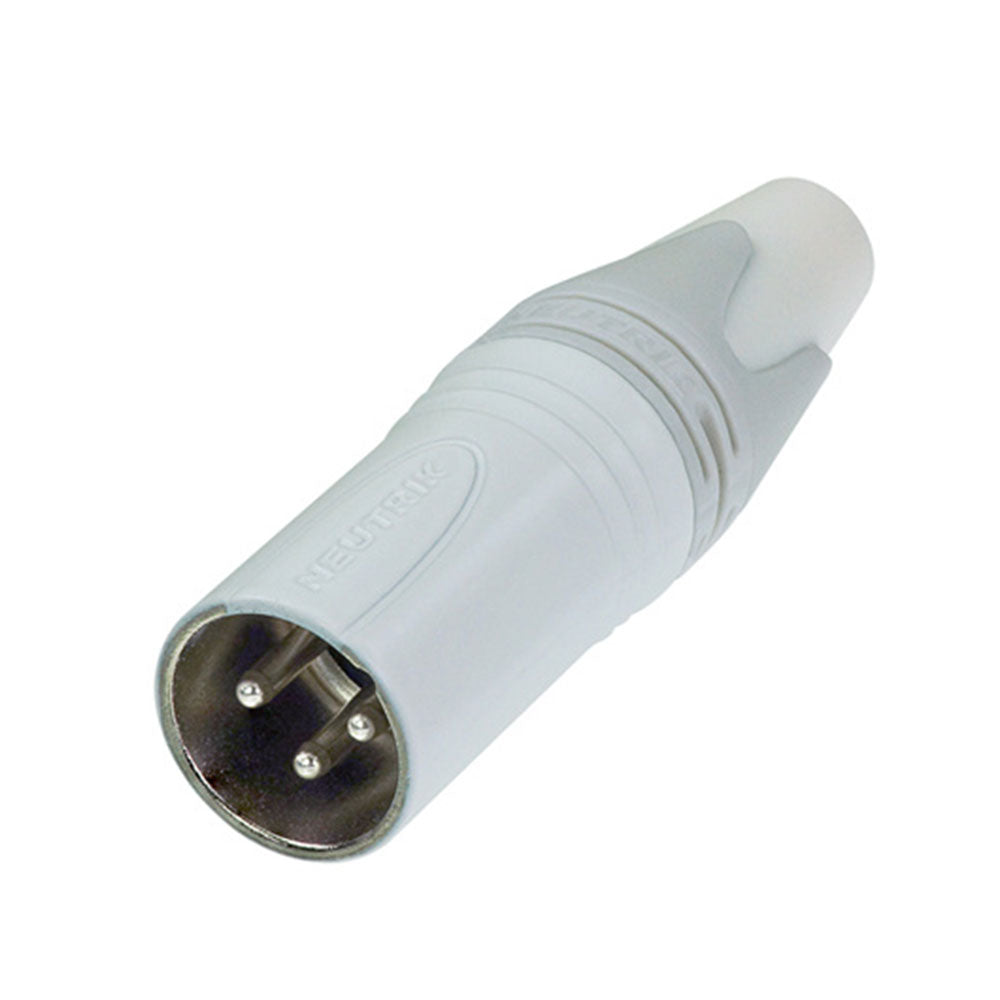

Neutrik NC3MXX-WT 3-Pin Male XLR Connector (White)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
3 pole male cable connector with Nickel housing and silver contacts.
Features:
- Male connector with improved locking recess without "window", more stringent housing increases durability
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
| Product | |
| Connector Type | XLR |
| Gender | male |
| Electrical | |
| Capacitance between contacts | ² 4 pF |
| Contact resistance | ² 3 mohms |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 2 Gohms (initial) |
| Insulation resistance | > 1 Gohms (after damp heat test) |
| Rated current per contact | 16 A |
| Rated voltage | 50 V |
| Mechanical | |
| Cable O.D. | 3.5 - 8.0 mm |
| Insertion force | ² 20 N |
| Withdrawal force | ² 20 N |
| Lifetime | > 1000 mating cycles |
| Wire size | max. 2.5 mm_ |
| Wire size | max. 14 AWG |
| Wiring | Solder contacts |
| Locking device | latch lock |
| Material | |
| Boot | Polyuretan |
| Bushing | Polyamide (PA6 15% GR) |
| Contact plating | 2 µm Ag |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Zinc diecast (ZnAl4Cu1) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80 ¡C |
