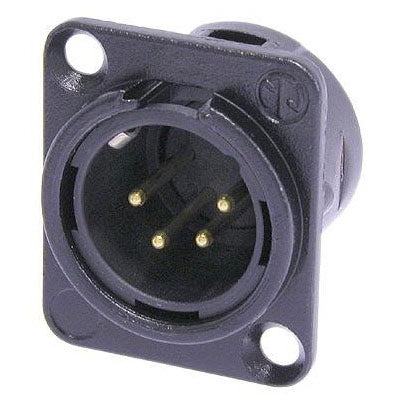

Neutrik NC4MD-L-B-1 DL1 Series 4 Pin Male Panel Mount Receptacle - Black/Gold
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Neutrik NC4MD-L-B-1 DL1 Series 4 Pin Male Panel Mount Receptacle - Black/Gold
Sale price$6.49
Regular price$7.25
Description
Universal D-size metal body XLR panel mount series. UL recognized component.
4 pole male receptacle, solder cups, black metal housing, gold contactsFeatures- Robust D metal shell Standardized D sized 24 mm panel cutout Solder cups on 3 - 7 pole version
| Electrical Specifications | |
| Number of contacts | 3 - 7 |
| Rated voltage | 50 V ac |
| Contact resistance | = 5 m ohm |
| Insulation resistance, initial | > 2 G ohm; after damp heat test:> 1G ohm (IEC 68-2-30) |
| Dielectric strength | 1500 V dc |
| Mechanical Specifications | |
| Lifetime | > 1000 mating cycles |
| Insertion / withdrawal force | = 20 N |
| Retention method, standard | latch lock |
| Retention method, -0 version | retention spring |
| Separating force | = 20 N |
| Rated current | 10 A |
| AWG | 1.5 mm_/16 AWG |
| Capacitance between contacts | = 7 pF |
| Material Specifications | |
| Shell | ZnAl4Cu1, gal Ni or black Cr plating |
| Insert | PA 6.6 30% GR (glass reinforced) |
| Contacts | CuZn39Pb3 |
| Contact surface | gal 2 µm Ag or gal 0.2 µm Au hard alloy over 2 µm Ni |
| Latch lock / spring | CK 67 steel, treated |
| Environmental Specifications | |
| Temperature range | -30¡ C to + 80¡ C |
| Flammability | UL 94HB |
| Solderability | complies with IEC 68-2-20 |
Universal D-size metal body XLR panel mount series. UL recognized component.
4 pole male receptacle, solder cups, black metal housing, gold contactsFeatures- Robust D metal shell Standardized D sized 24 mm panel cutout Solder cups on 3 - 7 pole version
| Electrical Specifications | |
| Number of contacts | 3 - 7 |
| Rated voltage | 50 V ac |
| Contact resistance | = 5 m ohm |
| Insulation resistance, initial | > 2 G ohm; after damp heat test:> 1G ohm (IEC 68-2-30) |
| Dielectric strength | 1500 V dc |
| Mechanical Specifications | |
| Lifetime | > 1000 mating cycles |
| Insertion / withdrawal force | = 20 N |
| Retention method, standard | latch lock |
| Retention method, -0 version | retention spring |
| Separating force | = 20 N |
| Rated current | 10 A |
| AWG | 1.5 mm_/16 AWG |
| Capacitance between contacts | = 7 pF |
| Material Specifications | |
| Shell | ZnAl4Cu1, gal Ni or black Cr plating |
| Insert | PA 6.6 30% GR (glass reinforced) |
| Contacts | CuZn39Pb3 |
| Contact surface | gal 2 µm Ag or gal 0.2 µm Au hard alloy over 2 µm Ni |
| Latch lock / spring | CK 67 steel, treated |
| Environmental Specifications | |
| Temperature range | -30¡ C to + 80¡ C |
| Flammability | UL 94HB |
| Solderability | complies with IEC 68-2-20 |
