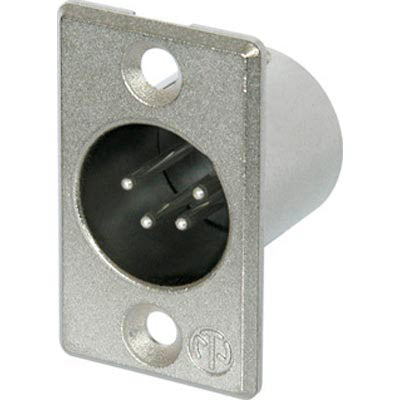

Neutrik NC4MP 4-Pin Male XLR Rectangular Receptacle
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Neutrik NC4MP 4-Pin Male XLR Rectangular Receptacle
Sale price$4.88
Regular price$5.45
Description
Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring.
4 pole male receptacle, solder contacts, Nickel housing, silver contacts
Features:
- Smallest available hard wiring receptacles with large solder cups
- Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32
| Product | |
| Connector Type | XLR |
| Gender | male |
| Electrical | |
| Capacitance between contacts | ≤ 7ÊpF |
| Contact resistance | ≤ 5ÊmΩ |
| Dielectric strength | 1,5ÊkVdc |
| Insulation resistance | > 2ÊGΩÊ(initial) |
| Insulation resistance | > 1ÊGΩÊ(after damp heat test) |
| Rated current per contact | 10ÊA |
| Rated voltage | 50ÊV |
| Mechanical | |
| Insertion force | ≤ 20ÊN |
| Withdrawal force | ≤ 20ÊN |
| Lifetime | > 1000Êmating cycles |
| Wire size | max. 1.5Êmm_ |
| Wire size | max. 16ÊAWG |
| Wiring | Solder contacts |
| Locking device | latch lock |
| Mounting direction | front |
| Chassis shape | P |
| Material | |
| Contact plating | 2 µm Ag over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Environmental | |
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80Ê¡C |
Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring.
4 pole male receptacle, solder contacts, Nickel housing, silver contacts
Features:
- Smallest available hard wiring receptacles with large solder cups
- Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32
| Product | |
| Connector Type | XLR |
| Gender | male |
| Electrical | |
| Capacitance between contacts | ≤ 7ÊpF |
| Contact resistance | ≤ 5ÊmΩ |
| Dielectric strength | 1,5ÊkVdc |
| Insulation resistance | > 2ÊGΩÊ(initial) |
| Insulation resistance | > 1ÊGΩÊ(after damp heat test) |
| Rated current per contact | 10ÊA |
| Rated voltage | 50ÊV |
| Mechanical | |
| Insertion force | ≤ 20ÊN |
| Withdrawal force | ≤ 20ÊN |
| Lifetime | > 1000Êmating cycles |
| Wire size | max. 1.5Êmm_ |
| Wire size | max. 16ÊAWG |
| Wiring | Solder contacts |
| Locking device | latch lock |
| Mounting direction | front |
| Chassis shape | P |
| Material | |
| Contact plating | 2 µm Ag over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Environmental | |
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80Ê¡C |
