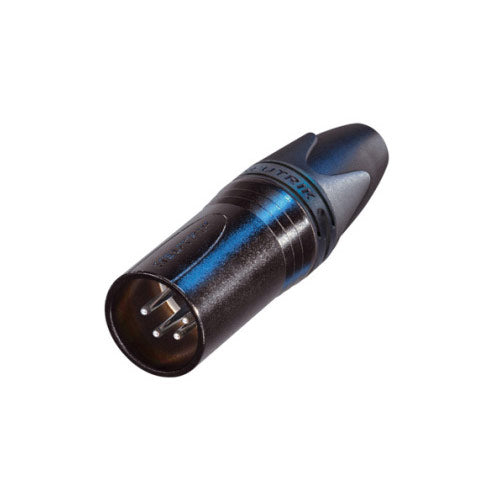

Neutrik NC4MXX-BAG Cable Mount XLR4M Connector (Black/Silver Contacts)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
4 pole male cable connector with black metal housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Features:
- Male connector with improved locking recess without window, more stringent housing increases durability
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, long lasting and dependable
- Internal thread on shell is well protected against any damage
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
| Connection Type | XLR |
| Gender | male |
| Capacitance between contacts | 7 pF |
| Contact resistance | 3 m (inner) |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 G (initial) |
| Rated current per contact | 10 A |
| Rated voltage | < 50 V |
| Cable O.D. | 3.5 - 8.0 mm |
| Insertion force | 20 N |
| Withdrawal force | 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | max. 1.5 mm_ |
| Wiresize | max. 16 AWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Boot | Polyurethane |
| Contact plating | 2 µm Ag over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Zinc diecast (ZnAl4Cu1) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Strain relief | Polyacetal (POM) |
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80 ¡C |
