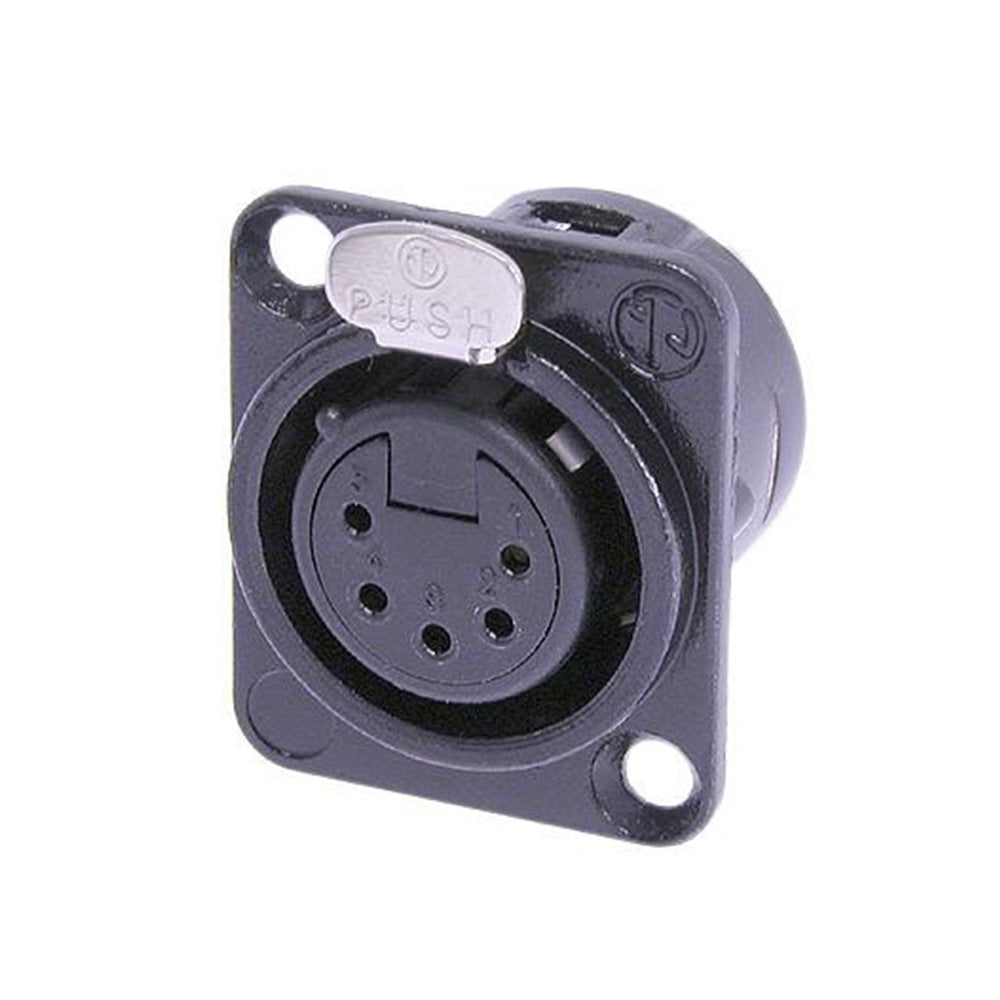

Neutrik NC5FD-L-BAG-1 D Series XLR5F Receptacle (Black/Silver Pins)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Neutrik NC5FD-L-BAG-1 D Series XLR5F Receptacle (Black/Silver Pins)
Sale price$10.67
Regular price$11.92
Description
5 pole female receptacle, solder cups, black metal housing, silver contacts. Universal D-size metal body XLR panel mount series. UL recognized component.
Features:
- Robust "D" metal shell
- Standardized D sized 24 mm panel cutout
- Solder cups on 3 - 7 pole version
| Connection Type | XLR |
| Gender | female |
| Capacitance between contacts | ² 7 pF |
| Contact resistance | ² 5 m½ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 G½ (initial) |
| Rated current per contact | 7,5 A |
| Rated voltage | < 50 V |
| Insertion force | ² 20 N |
| Withdrawal force | ² 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | max. 1.0 mm_ |
| Wiresize | max. 18 AWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Chassis shape | D |
| Contact plating | 2 µm Ag over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Approvals | UL |
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80 ¡C |
5 pole female receptacle, solder cups, black metal housing, silver contacts. Universal D-size metal body XLR panel mount series. UL recognized component.
