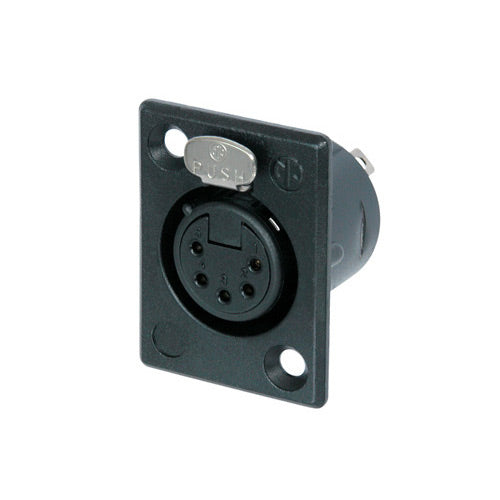

Neutrik NC5FP-B-1 P Series 5-Pin XLR Female Receptacle (Black/Gold Contacts)


  • Dale #:

    NEUT-NC5FPB1
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 8:30 am to 5:30 pm

Description

5 pole female receptacle, solder contacts, black metal housing, gold contacts. Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring. Features: Smallest available hard wiring receptacles with large solder cups Short female recept... Read More

Free Shipping (orders over $50)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

5 pole female receptacle, solder contacts, black metal housing, gold contacts. Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring.

Features:

  • Smallest available hard wiring receptacles with large solder cups
  • Short female receptacle
  • Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32

More +

Product Specs

Connection Type XLR
Gender female
Capacitance between contacts ≤ 7 pF
Contact resistance ≤ 5 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 7,5 A
Rated voltage < 50 V
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize max. 1.0 mm²
Wiresize max. 18 AWG
Wiring Solder contacts
Locking device Latch lock
Mounting direction Front mounting
Chassis shape P
Contact plating 0.2 µm Au hard alloy over 2 µm Ni
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 30 % GR)
Locking element Steel Ck67
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Flammability UL 94 HB
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
