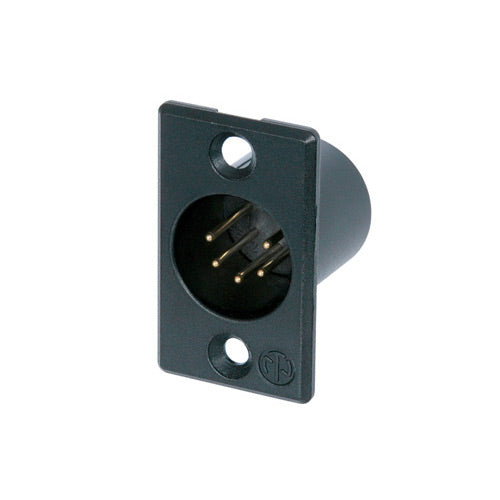

Neutrik NC5MP-B P Series 5-Pin XLR Male Receptacle (Black/Gold Contacts)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Neutrik NC5MP-B P Series 5-Pin XLR Male Receptacle (Black/Gold Contacts)
Sale price$9.33
Regular price$10.42
Description
Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring. 5 pole male receptacle, solder contacts, black metal housing, gold contacts.
Features:
- Smallest available hard wiring receptacles with large solder cups
- Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32
| Connection Type | XLR |
| Gender | male |
| Capacitance between contacts | ² 7 pF |
| Contact resistance | ² 5 m½ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 G½ (initial) |
| Rated current per contact | 7,5 A |
| Rated voltage | < 50 V |
| Insertion force | ² 20 N |
| Withdrawal force | ² 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | max. 1.0 mm_ |
| Wiresize | max. 18 AWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Mounting direction | Front mounting |
| Chassis shape | P |
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80 ¡C |
Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring. 5 pole male receptacle, solder contacts, black metal housing, gold contacts.
Features:
- Smallest available hard wiring receptacles with large solder cups
- Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32
| Connection Type | XLR |
| Gender | male |
| Capacitance between contacts | ² 7 pF |
| Contact resistance | ² 5 m½ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 G½ (initial) |
| Rated current per contact | 7,5 A |
| Rated voltage | < 50 V |
| Insertion force | ² 20 N |
| Withdrawal force | ² 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | max. 1.0 mm_ |
| Wiresize | max. 18 AWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Mounting direction | Front mounting |
| Chassis shape | P |
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80 ¡C |
