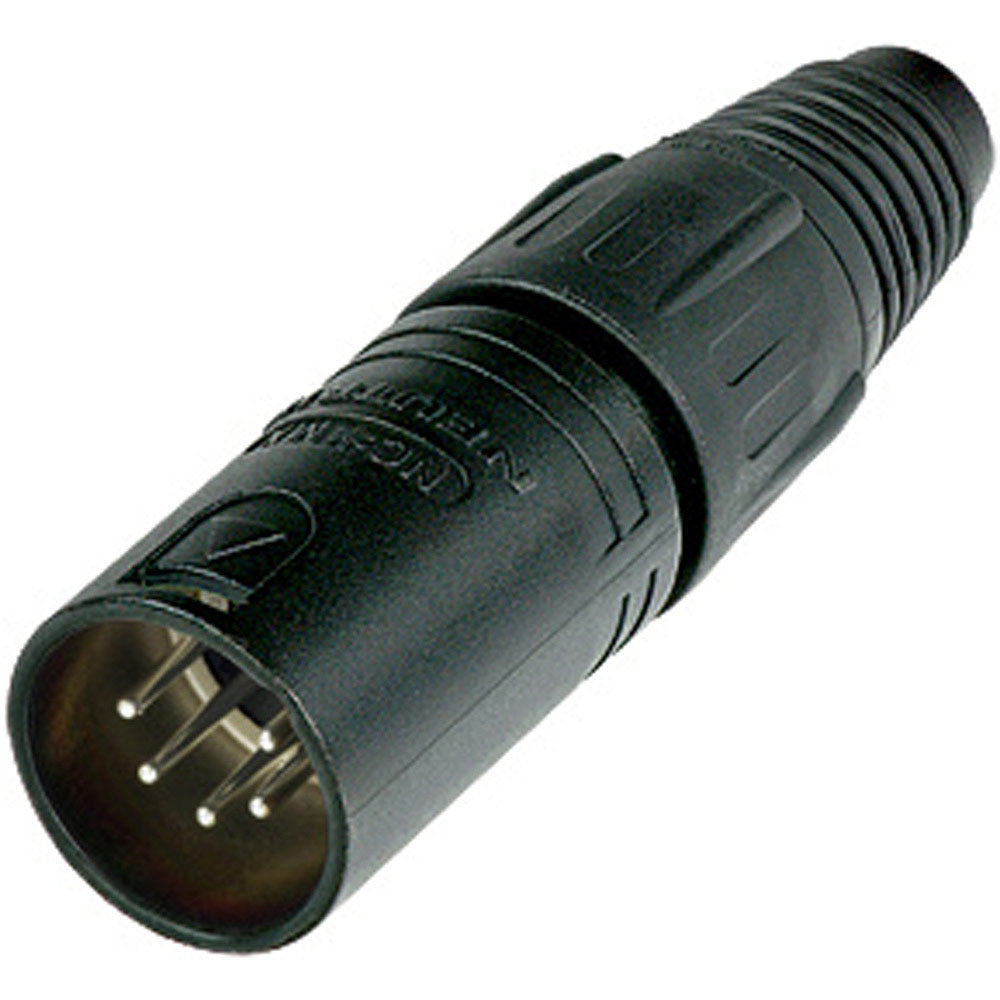

Neutrik NC5MX-BAG XLR5M Plug (Black with Silver Contacts)

Dale #:
NEUT-NC5MXBAG
Availability:
In Stock
Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm

5 pole male cable connector with black metal housing and silver contacts. The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clam... Read More

Retail Price: $7.10 Our Price: $6.09

Free Shipping (orders over $99)

Have a Question?

Call Toll Free: 888-462-7828

Features

Rugged zinc diecast shell, long lasting and durable
Chuck type strain relief system for secure clamping of cables
Boot with rubber gland gives high protection against bending stresses
Coloured rings and boots available for coding and marking
UL recognized components

More +

Product
Title	NC5MX-BAG
Connection Type	XLR
Gender	male
Electrical
Capacitance between contacts	= 7 pF
Contact resistance	= 3 mO (inner)
Dielectric strength	1,5 kVdc
Insulation resistance	> 2 GO (initial)
Rated current per contact	7,5 A
Rated voltage	50 V
Mechanical
Cabel O.D.	3.5 - 8.0 mm
Insertion force	= 20 N
Withdrawal force	= 20 N
Lifetime	> 1000 mating cycles
Wiresize	max. 1.0 mm²
Wiresize	max. 18 AWG
Wiring	Solder contacts
Locking device	Latch lock
Material
Boot	Polyurethan
Bushing	Stainless steel
Contact plating	0.2 µm Au hard alloy over 2 µm Ni
Contacts	Brass (CuZn39Pb3)
Insert	Polyamide (PA 6.6 30 % GR)
Locking element	Zinc diecast (ZnAl4Cu1)
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Black chromium
Strain relief	Polyacetal (POM)
Environmental
Approvals	UL
Flammability	UL 94 HB
Standard compliance	IEC 61076-2-103
Protection class	IP 40
Protection class	IP 65
Solderability	Complies with IEC 68-2-20
Temperature range	-30 °C to +80 °C
