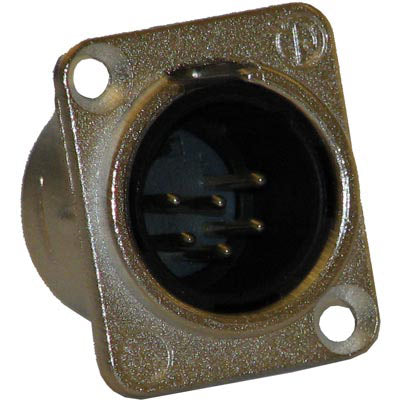

Neutrik NC6MSD-L-1 DL1 Series 6-Pin Male XLR Receptacle Jack - Silver


  • Dale #:

    NEUT-NC6MSDL1

Description

Neutrik Receptacle DL1 series 6 pin male .Receptacle DL1 series 6 pin male - solder cups- nickel/silver

Notify me when this product is available:

Free Shipping (orders over $50)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Product Specs

Connector Type XLR
Gender male
Electrical
Capacitance between contacts ≤ 7 pF
Contact resistance≤ 5 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance> 2 GΩ (initial)
Insulation resistance> 1 GΩ (after damp heat test)
Rated current per contact 7,5 A
Rated voltage50 V
Mechanical
Insertion force≤ 20 N
Withdrawal force ≤ 20 N
Lifetime> 1000 mating cycles
Wire size max.1.0 mm²
Wire size max. 18 AWG
WiringSolder contacts
Locking devicelatch lock
Mounting directionfront & rear
Chassis shapeD
Material
Contact plating 2 µm Ag over 2 µm Ni
ContactsBrass (CuZn39Pb3)
Insert Polyamide (PA 6.6 30 % GR)
Locking elementSteel Ck67
ShellZinc diecast (ZnAl4Cu1)
Shellplating Nickel
Environmental
Approvals UL
Flammability UL 94 HB
Standard compliance IEC 61076-2-103
Protection classIP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
