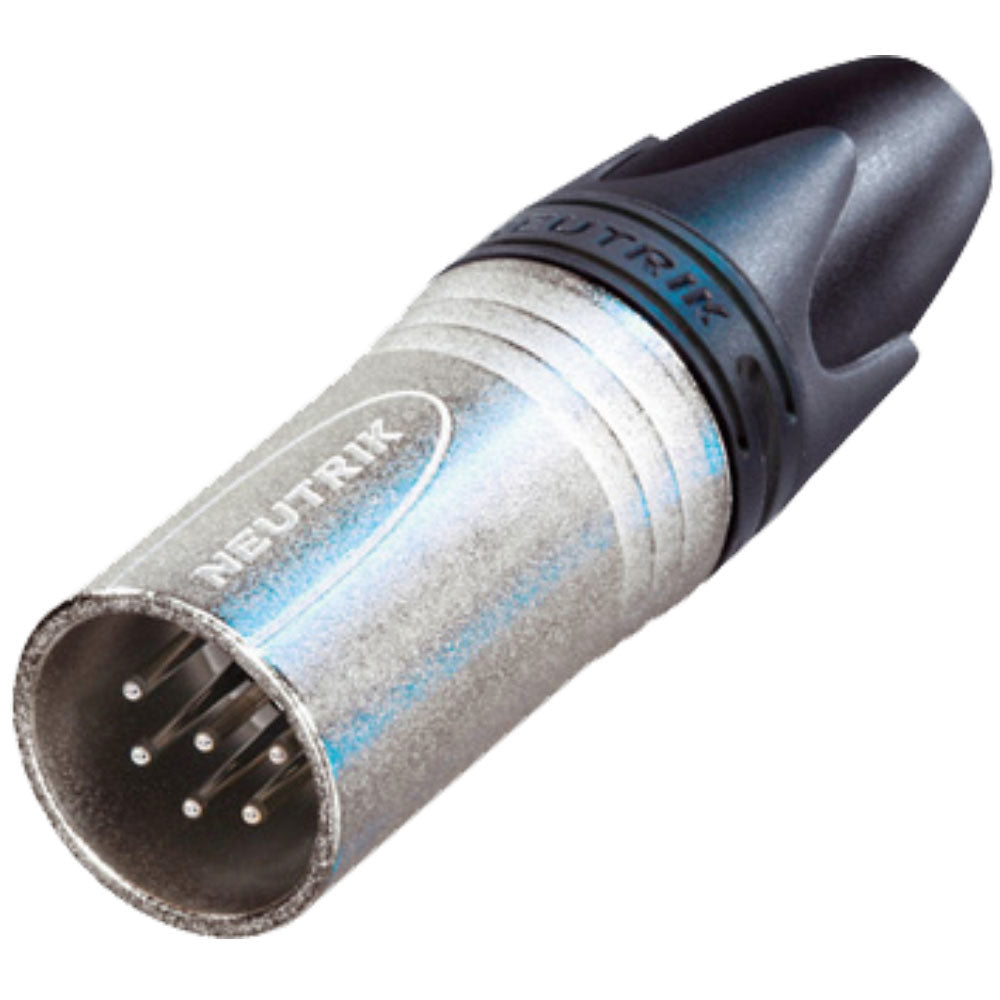

Neutrik NC6MSXX 6 Pole Male Cable Connector with Nickel Housing and Silver Contacts
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
NC6MXX - 6 pole male cable connector with Nickel housing and silver contacts.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Features:
- Male connector with improved locking recess without window, more stringent housing increases durability
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well proteced against any damage
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
| System Specifications | |
| Title | NC6MXX |
| Connection Type | XLR |
| Gender | male |
| Electrical | |
| Capacitance between contacts | 7 pF |
| Contact resistance | 3 m (inner) |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 G (initial) |
| Rated current per contact | 7,5 A |
| Rated voltage | < 50 V |
| Mechanical | |
| Cable O.D. | 3.5 - 8.0 mm |
| Insertion force | 20 N |
| Withdrawal force | 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | max. 1.0 mm_ |
| Wiresize | max. 18 AWG |
| WiringS | older contacts |
| Locking device | Latch lock |
| Material | |
| Boot | Polyurethan |
| Contact plating | 2 µm Ag over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Zinc diecast (ZnAl4Cu1) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80 ¡C |
