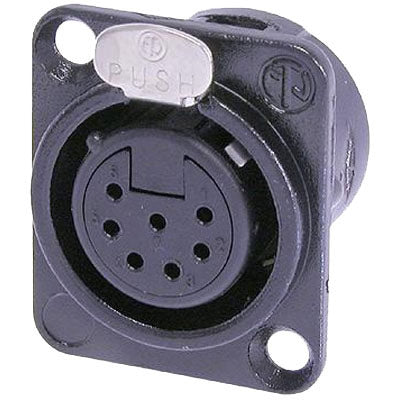

Neutrik NC7FD-L-B-1 7-Pin Female Receptacle - Black/Gold


  • Dale #:

    NEUT-NC7FDLB1
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm

Description

7 pole female receptacle, solder cups, black metal housing, gold contacts Universal D-size metal body XLR panel mount series. UL recognized component.Features Robust "D" metal shell Standardized D sized 24 mm panel cutout Solder cups on 3 - 7 pole version Read More

Free Shipping (orders over $99)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

7 pole female receptacle, solder cups, black metal housing, gold contacts Universal D-size metal body XLR panel mount series. UL recognized component.

Features

  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • Solder cups on 3 - 7 pole version

More +

Product Specs

Connection TypeXLR
Genderfemale
Electrical
Capacitance between contacts≤ 9 pF
Contact resistance≤ 5 mΩ (inner)
Dielectric strength1,5 kVdc
Insulation resistance> 10 GΩ (initial)
Rated current per contact5 A
Rated voltage50 V
Mechanical
Insertion force≤ 20 N
Withdrawal force≤ 20 N
Lifetime> 1000 mating cycles
Wiresizemax. 1.0 mm²
Wiresizemax. 18 AWG
WiringSolder contacts
Locking deviceLatch lock
Chassis shapeD
Material
Contact plating0.2 µm Au hard alloy over 2 µm Ni
ContactsBrass (CuZn39Pb3)
InsertPolyamide (PA 6.6 30 % GR)
Locking elementStahl Ck67
ShellZinc diecast (ZnAl4Cu1)
Shell platingBlack chromium
Environmental
ApprovalsUL
FlammabilityUL 94 HB
Standard complianceIEC 61076-2-103
Protection classIP 40
SolderabilityComplies with IEC 68-2-20
Temperature range-30 °C to +80 °C

More +
