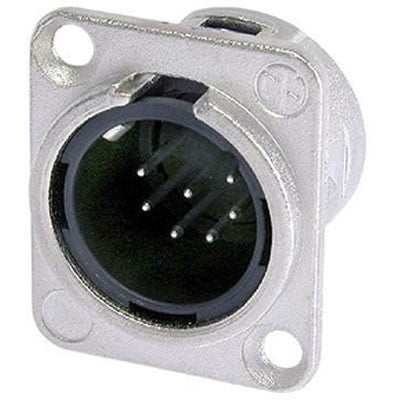

Neutrik NC7MD-L-1 DL Series 7 Pin Male Receptacle - Solder Cups - Nickel/Silver
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Neutrik NC7MD-L-1 DL Series 7 Pin Male Receptacle - Solder Cups - Nickel/Silver
Sale price$14.00
Regular price$15.63
Description
Universal D-size metal body XLR panel mount series. UL recognized component. 7 pole male receptacle, solder cups, Nickel housing, silver contacts
Features
- Robust D metal shell
- Standardized D sized 24 mm panel cutout
- Solder cups on 3 - 7 pole version
| Connector Type | XLR |
| Gender | male |
| Electrical | |
| Capacitance between contacts | <= 9 pF |
| Contact resistance | <= 5 mohms |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 2 Gohms (initial) |
| Insulation resistance | > 1 Gohms (after damp heat test) |
| Rated current per contact | 5 A |
| Rated voltage | 50 V |
| Mechanical | |
| Insertion force | <= 20 N |
| Withdrawal force | <= 20 N |
| Lifetime | > 1000 mating cycles |
| Wire size | max. 1.0 mm_ |
| Wire size | max. 18 AWG |
| Wiring | Solder contacts |
| Locking device | latch lock |
| Mounting direction | front / rear |
| Chassis shape | D |
| Material | |
| Contact plating | 2 µm Ag over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Environmental | |
| Approvals | UL |
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80 ¡C |
Universal D-size metal body XLR panel mount series. UL recognized component. 7 pole male receptacle, solder cups, Nickel housing, silver contacts
Features
- Robust D metal shell
- Standardized D sized 24 mm panel cutout
- Solder cups on 3 - 7 pole version
| Connector Type | XLR |
| Gender | male |
| Electrical | |
| Capacitance between contacts | <= 9 pF |
| Contact resistance | <= 5 mohms |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 2 Gohms (initial) |
| Insulation resistance | > 1 Gohms (after damp heat test) |
| Rated current per contact | 5 A |
| Rated voltage | 50 V |
| Mechanical | |
| Insertion force | <= 20 N |
| Withdrawal force | <= 20 N |
| Lifetime | > 1000 mating cycles |
| Wire size | max. 1.0 mm_ |
| Wire size | max. 18 AWG |
| Wiring | Solder contacts |
| Locking device | latch lock |
| Mounting direction | front / rear |
| Chassis shape | D |
| Material | |
| Contact plating | 2 µm Ag over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Environmental | |
| Approvals | UL |
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80 ¡C |
