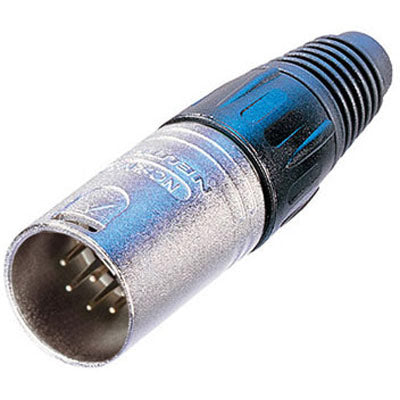

Neutrik NC7MX 7 Pin Male Connector - Nickel/Silver



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:NEUT-NC7MX

Availability: In Stock

Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 8:30 am to 5:30 pm
Free Shipping (orders over $30)
  • The industry standard XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.

    7 pole male cable connector with Nickel housing and silver contacts.Features
    • Rugged zinc diecast shell, long lasting and durable Chuck type strain relief system for secure clamping of cables Boot with rubber gland gives high protection against bending stresses Coloured rings and boots available for coding and marking UL recognized components
  • Product
    Connector TypeXLR
    Gendermale
    Electrical
    Capacitance between contacts ≤ 9 pF
    Contact resistance≤ 3 mOhms
    Dielectric strength1,5 kVdc
    Insulation resistance> 2 GOhms (initial)
    Insulation resistance> 1 GOhms (after damp heat test)
    Rated current per contact5 A
    Rated voltage50 V
    Mechanical
    Cable O.D.3.5 - 8.0 mm
    Insertion force≤ 20 N
    Withdrawal force≤ 20 N
    Lifetime> 1000 mating cycles
    Wire sizemax. 1.0 mm²
    Wire sizemax. 18 AWG
    WiringSolder contacts
    Locking devicelatch lock
    Material
    BootPolyuretan
    BushingPolyamide (PA 6 15% GR)
    Contact plating2 µm Ag over 2 µm Ni
    ContactsBrass (CuZn39Pb3)
    InsertPolyamide (PA 6.6 30 % GR)
    Locking elementSt3K32 (latch) / Ck 67 (spring)
    ShellZinc diecast (ZnAl4Cu1)
    Shell platingNickel
    Strain reliefPolyacetal (POM)
    Environmental
    ApprovalsUL
    FlammabilityUL 94 HB
    Standard complianceIEC 61076-2-103
    Protection class IP 40
    SolderabilityComplies with IEC 68-2-20
    Temperature range-30 °C to +80 °C
