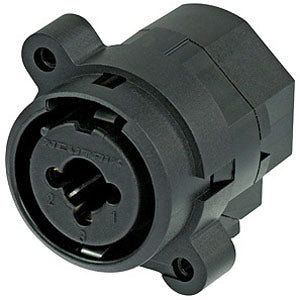

Neutrik NCJ6FI-S-0 3-Pin XLR Female Receptacle - Black



  • Dale #:

    NEUT-NCJ6FIS0

  • Availability:

    In Stock

  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm

Description

3 pole XLR female receptacle with 1/4" stereo jack without switching contact, solder cups for wire termination, retention spring XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4" jack.Features Combined XLR receptacle and 1/4" phone jack Balanced or line inputs in one XL... Read More

Retail Price: $3.88 Our Price: $3.33

affirm logo 3, 6 or 12 monthly payments available.

Learn more

Free Shipping (orders over $99)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

3 pole XLR female receptacle with 1/4" stereo jack without switching contact, solder cups for wire termination, retention spring XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4" jack.

Features

  • Combined XLR receptacle and 1/4" phone jack
  • Balanced or line inputs in one XLR shell
  • Saves rack space by combining 2 connectors in one housing
  • Very low conductor capacitance, therefore suitable for digital audio

More +

Product Specs

Connection TypeCombo
Genderfemale
Electrical
Contact resistance< 10 mΩ (inner) (XLR)
Comment< 20
Dielectric strength1,5 kVdc
Insulation resistance> 10 GΩ (initial)
Rated current per contact7,5 A (XLR)
Rated current per contact7,5 A (Jack)
Mechanical
Insertion force≤ 25 N
Withdrawal force≤ 25 N
Lifetime> 1000 mating cycles
Locking force> 20 seoerate force N
Panel thicknessmax. 7 mm 0.27"
Mounting directionrear
Material
Contact plating0.2 µm Au hard alloy over 2 µm Ni
ContactsBronze (CuSn6)
InsertPolyamide (PA 6.6 30 % GR)
Locking elementStahl Ck67
Temperature range-30 °C to +80 °C
