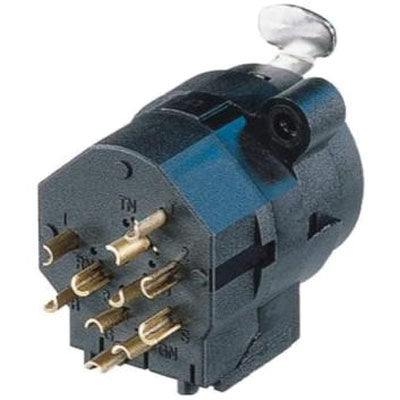

Neutrik NCJ6FI-S Combo Stereo Jack Solder Cups
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Neutrik NCJ6FI-S Combo Stereo Jack Solder Cups
Sale price$3.64
Regular price$4.07
Description
3 pole XLR female receptacle with 1/4" stereo jack without switching contact, solder cups
XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4" jack.
Features:
- Combined XLR receptacle and 1/4" phone jack
- Balanced or line inputs in one XLR shell
- Saves rack space by combining 2 connectors in one housing
- Very low conductor capacitance, therefore suitable for digital audio
| Product | |
| Connector Type | Combo |
| Gender | female |
| Electrical | |
| Contact resistance | < 10ÊmΩÊ(XLR) |
| Dielectric strength | 1,5ÊkVdc |
| Insulation resistance | > 2ÊGΩÊ(initial) |
| Insulation resistance | > 0.5ÊGΩÊ(after damp heat test) |
| Rated current per contact | 7,5ÊAÊ(XLR) |
| Rated current per contact | 7,5ÊAÊ(Jack) |
| Rated voltage | 50ÊV |
| Grounding options | Separate ground contact to mating connector shell and front panel |
| Mechanical | |
| Insertion force | ≤ 25ÊN |
| Withdrawal force | ≤ 25ÊN |
| Lifetime | > 1000Êmating cycles |
| Panel thickness | max. 7ÊmmÊ"0.27" |
| Wire size | 0::7Êmm_ |
| Material | |
| Contacts | (XLR and switch contacts)ÊBronze (CuSn6) |
| Environmental | |
| Area of application | -30::+80 |
| Optical |
3 pole XLR female receptacle with 1/4" stereo jack without switching contact, solder cups
XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4" jack.
Features:
- Combined XLR receptacle and 1/4" phone jack
- Balanced or line inputs in one XLR shell
- Saves rack space by combining 2 connectors in one housing
- Very low conductor capacitance, therefore suitable for digital audio
| Product | |
| Connector Type | Combo |
| Gender | female |
| Electrical | |
| Contact resistance | < 10ÊmΩÊ(XLR) |
| Dielectric strength | 1,5ÊkVdc |
| Insulation resistance | > 2ÊGΩÊ(initial) |
| Insulation resistance | > 0.5ÊGΩÊ(after damp heat test) |
| Rated current per contact | 7,5ÊAÊ(XLR) |
| Rated current per contact | 7,5ÊAÊ(Jack) |
| Rated voltage | 50ÊV |
| Grounding options | Separate ground contact to mating connector shell and front panel |
| Mechanical | |
| Insertion force | ≤ 25ÊN |
| Withdrawal force | ≤ 25ÊN |
| Lifetime | > 1000Êmating cycles |
| Panel thickness | max. 7ÊmmÊ"0.27" |
| Wire size | 0::7Êmm_ |
| Material | |
| Contacts | (XLR and switch contacts)ÊBronze (CuSn6) |
| Environmental | |
| Area of application | -30::+80 |
| Optical |
