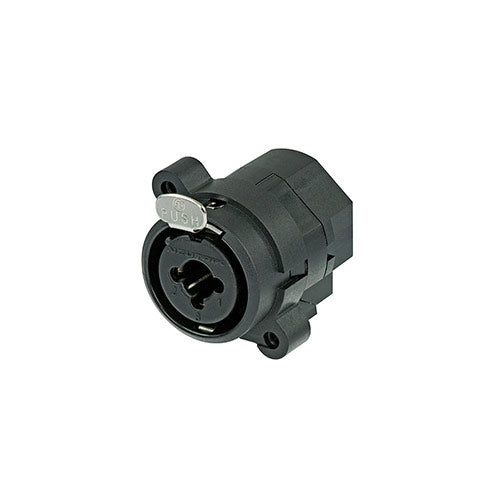

Neutrik NCJ9FI-S - 3-Pin Female XLR and 1/4" Combo Receptacle (Solder Cups)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Neutrik NCJ9FI-S - 3-Pin Female XLR and 1/4" Combo Receptacle (Solder Cups)
Sale price$4.96
Regular price$5.53
Description
3 pole XLR female receptacle with 1/4" switching stereo jack, solder cups for wire termination. XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4" jack.
Features:
- Combined XLR receptacle and 1/4" phone jack
- Balanced or line inputs in one XLR shell
- Saves rack space by combining 2 connectors in one housing
- Very low conductor capacitance, therefore suitable for digital audio
| Connection Type | Combo |
| Gender | female |
| Contact resistance | < 10 m? (inner) (XLR) |
| Contact resistance | < 20 m? (outer) |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 G? (initial) |
| Rated current per contact | 7,5 A (XLR) |
| Rated current per contact | 7,5 A (Jack) |
| Rated voltage | < 50 V |
| Switching contacts | 3 |
| Insertion force | ? 25 N |
| Withdrawal force | ? 25 N |
| Lifetime | > 1000 mating cycles |
| Panel thickness | max. 7 mm 0.27" |
| Mounting direction | rear |
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Bronze (CuSn6) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Temperature range | -30 ¡C to +80 ¡C |
3 pole XLR female receptacle with 1/4" switching stereo jack, solder cups for wire termination. XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4" jack.
Features:
- Combined XLR receptacle and 1/4" phone jack
- Balanced or line inputs in one XLR shell
- Saves rack space by combining 2 connectors in one housing
- Very low conductor capacitance, therefore suitable for digital audio
| Connection Type | Combo |
| Gender | female |
| Contact resistance | < 10 m? (inner) (XLR) |
| Contact resistance | < 20 m? (outer) |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 G? (initial) |
| Rated current per contact | 7,5 A (XLR) |
| Rated current per contact | 7,5 A (Jack) |
| Rated voltage | < 50 V |
| Switching contacts | 3 |
| Insertion force | ? 25 N |
| Withdrawal force | ? 25 N |
| Lifetime | > 1000 mating cycles |
| Panel thickness | max. 7 mm 0.27" |
| Mounting direction | rear |
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Bronze (CuSn6) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Temperature range | -30 ¡C to +80 ¡C |
