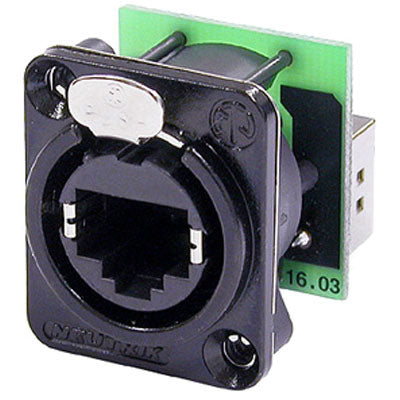

Neutrik NE8FDP-B Ethercon RJ45 Feed-through Panel Mount Receptacle
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The EtherCon Series is a ruggadized and lockable RJ45 connector system, optimized for proaudio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the EtherCon series and is perfectly suitable for panel mount and the installer market. RJ45 feedthrough receptacle, black D-shape metal flange with the latch lock. Mounting screws included.Features- Accommodates NE8MC* or any standard RJ45 plug Approved latch lock system Mountable from the front or rear of the panel Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
| Product | |
| Connector Type | RJ45 |
| Gender | female |
| Electrical | |
| Contact resistance | < 10 mOhms |
| Dielectric strength | 1 kVdc |
| Frequencyrange | 1 - 100 MHz |
| Insulation resistance | > 0.5 GOhms |
| Rated current per contact | 1,5 A |
| Rated voltage | 50 V |
| Transmission performance | CAT 5e |
| Standard compliance | TIA / EIA 568B and ISO / IEC 11801 |
| Mechanical | |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Panel thickness | max. 4 mm 0.16'' |
| Wiring | Feedthrough (2 mounting screws included) |
| Locking device | latch lock |
| Mounting direction | front / rear |
| Chassis shape | D |
| Material | |
| Contact plating | 0.2 µm Au over Ni plating |
| Contacts | Bronze (CuSn8) |
| Insert | PBTP 15 % GR |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Environmental | |
| Standard compliance | TIA/EIA 586B, IEC11801 |
| Temperature range | -30 ¡C to +80 ¡C |
