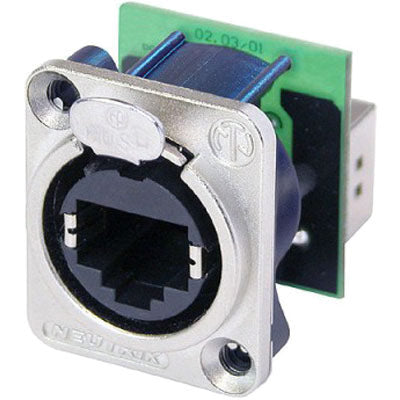

Neutrik NE8FDP Ethercon D Series Receptacle
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The EtherCon Series is a ruggadized and lockable RJ45 connector system, optimized for proaudio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the EtherCon series and is perfectly suitable for panel mount and the installer market.
RJ45 feedthrough receptacle, D-shape metal flange with the latch lock. Mounting screws included.
Features:
- Accommodates NE8MC or any standard RJ45 plug
- Approved latch lock system
- Mountable from the front or rear of the panel
| Product | |
| Connector Type | RJ45 |
| Gender | female |
| Electrical | |
| Contact resistance | < 10ÊmΩ |
| Dielectric strength | 1ÊkVdc |
| Frequency range | 1 - 100ÊMHz |
| Insulation resistance | > 0.5ÊGΩ |
| Rated current per contact | 1,5ÊA |
| Rated voltage | 50ÊV |
| Mechanical | |
| Insertion force | ≤ 20ÊN |
| Withdrawal force | ≤ 20ÊN |
| Lifetime | > 1000Êmating cycles |
| Panel thickness | max. 4ÊmmÊ"0.16" |
| Wire size | 0::4Êmm_ |
| RW / Straight | (2 mounting screws included) |
| Environmental | |
| Protection class | TIA/EIA 586B, IEC11801 |
| Area of application | -30::+80 |
