Neutrik NE8FDP-R-B - Right-Angle D-Series RJ45 Feed Thru Receptacle (Black)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description

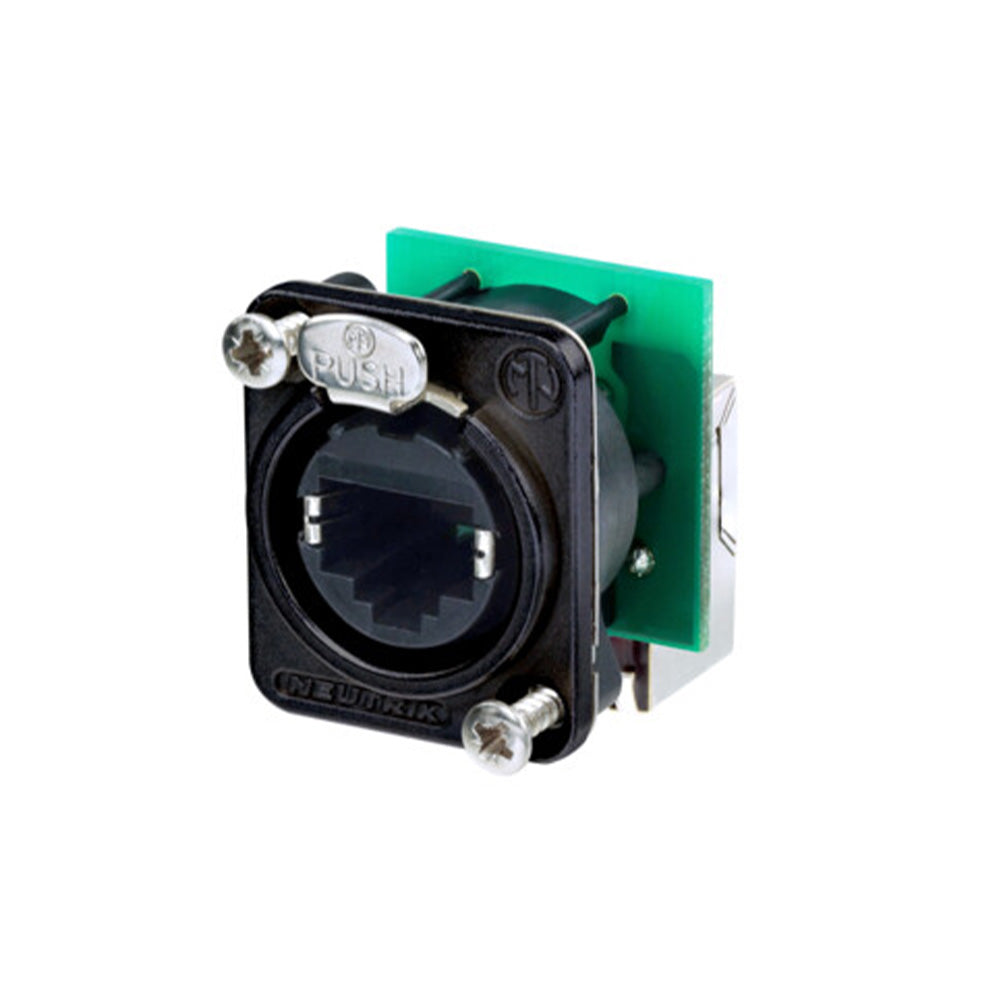

Right angle RJ45 feedthrough receptacle, black D-shape metal flange with latch lock, mounting screws included
The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.
Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
Features:
- Right angle CAT5e jack for space saving connections on the rear
- Accommodates NE8MC* or any standard RJ45 plugs
- Approved latch lock system
- Mountable from the front or rear of the panel
- Complies with CAT5e according to TIA / EIA 568B and ISO / IEC 11801 standards
| Title | NE8FDP-R |
| Gender | female |
| Electrical | |
| Contact resistance | < 10 m½ |
| Dielectric strength | 1 kVdc |
| Frequencyrange | 1 - 100 MHz |
| Insulation resistance | > 0.5 G½ |
| Rated current per contact | 1.5 A |
| Rated voltage | < 50 V |
| Transimission performance | CAT 5e |
| Standard compliance | TIA/EIA 586B, IEC11801 |
| Mechanical | |
| Insertion force | ² 20 N |
| Withdrawal force | ² 20 N |
| Lifetime | > 1000 mating cycles |
| Panel thickness | max. 4 mm , 0.16'' |
| Wiresize | |
| Wiring | Feedthrough |
| Locking device | Latch lock |
| Chassis shape | D |
| Material | |
| Contact plating | 0.2 µm Au over Ni plating |
| Contacts | Bronze (CuSn8) |
| Insert | PBTP 15 % GR |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Environmental | |
| Flammability | UL 94 V-0 |
| Temperature range | -30 ¡C to +80 ¡C |
Right angle RJ45 feedthrough receptacle, black D-shape metal flange with latch lock, mounting screws included
The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.
Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
Features:
- Right angle CAT5e jack for space saving connections on the rear
- Accommodates NE8MC* or any standard RJ45 plugs
- Approved latch lock system
- Mountable from the front or rear of the panel
- Complies with CAT5e according to TIA / EIA 568B and ISO / IEC 11801 standards
| Title | NE8FDP-R |
| Gender | female |
| Electrical | |
| Contact resistance | < 10 m½ |
| Dielectric strength | 1 kVdc |
| Frequencyrange | 1 - 100 MHz |
| Insulation resistance | > 0.5 G½ |
| Rated current per contact | 1.5 A |
| Rated voltage | < 50 V |
| Transimission performance | CAT 5e |
| Standard compliance | TIA/EIA 586B, IEC11801 |
| Mechanical | |
| Insertion force | ² 20 N |
| Withdrawal force | ² 20 N |
| Lifetime | > 1000 mating cycles |
| Panel thickness | max. 4 mm , 0.16'' |
| Wiresize | |
| Wiring | Feedthrough |
| Locking device | Latch lock |
| Chassis shape | D |
| Material | |
| Contact plating | 0.2 µm Au over Ni plating |
| Contacts | Bronze (CuSn8) |
| Insert | PBTP 15 % GR |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Environmental | |
| Flammability | UL 94 V-0 |
| Temperature range | -30 ¡C to +80 ¡C |
