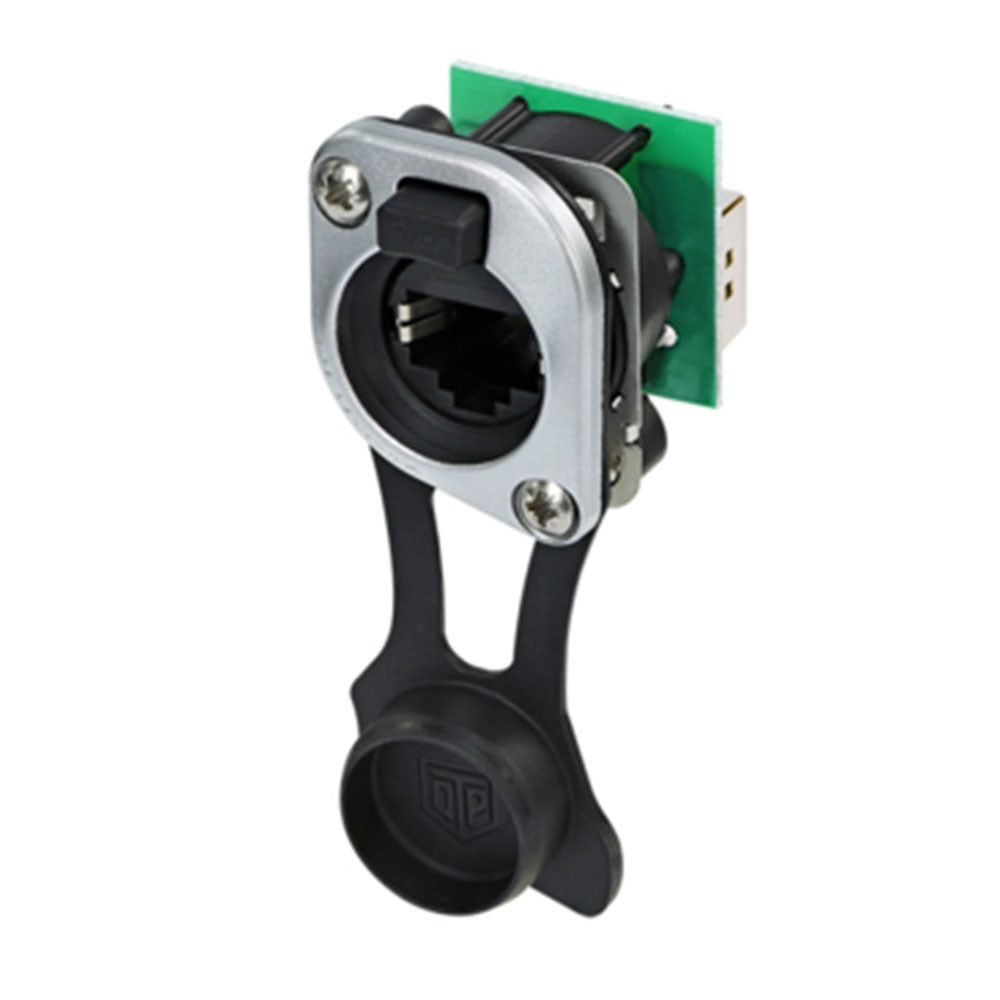

Neutrik NE8FDP-TOP - EtherCON RJ45 D-Series Feed-Thru Receptacle with Sealing Cap (Nickel)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
RJ45 feedthrough receptacle, combined with sealing kit SE8FD-TOP, D-shape metal flange with the latch lock, mounting screws included.
The etherCON series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lighting network applications with IP65 rating and UL 50E certification. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.
ATTENTION: Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
Features:
- IP65 rating and certified outdoor protection to UL 50E (in combination with NE8MX-TOP or sealing cap closed)
- Uses high impact UV-resistant and gasket materials
- Accomodates NE8MCX* or any standard RJ45 plug
- Class D or CAT5e according to ISO/IEC 11801 and TIA/EIA
- Approved latch lock system
- Mountable from the front of the panel
- Ground panel connection
| Title | NE8FDP-TOP |
| Type | Chassis |
| Connection Type | etherCON |
| Gender | female |
| Electrical | |
| Contact resistance | < 10 m½ |
| Dielectric strength | 1 kVdc |
| Frequency range | 1 - 100 MHz |
| Insulation resistance | > 0.5 G½ |
| Rated current per contact | 1.5 A |
| Rated voltage | < 50 V |
| Transmission performance | CAT 5e |
| Mechanical | |
| Insertion force | ² 20 N |
| Withdrawal force | ² 20 N |
| Lifetime | 1000 mating cycles |
| Panel thickness | 2 mm - 4 mm , 0.08" - 0.16" |
| Wiring | Feedthrough |
| Locking device | Latch lock |
| Chassis shape | D |
| Material | |
| Contact plating | 0.2 µm Au over Ni plating |
| Contacts | Bronze (CuSn8) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Chromium |
| Environmental | |
| Flammability | UL 94 V-0 |
| Standard compliance | TIA/EIA 586B, IEC11801 |
| Temperature range | -30 ¡C to +80 ¡C |
| Protection class | IP65, UL50E enclosure type 4 (mated or sealing cap closed) |
RJ45 feedthrough receptacle, combined with sealing kit SE8FD-TOP, D-shape metal flange with the latch lock, mounting screws included.
The etherCON series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lighting network applications with IP65 rating and UL 50E certification. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.
ATTENTION: Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
Features:
- IP65 rating and certified outdoor protection to UL 50E (in combination with NE8MX-TOP or sealing cap closed)
- Uses high impact UV-resistant and gasket materials
- Accomodates NE8MCX* or any standard RJ45 plug
- Class D or CAT5e according to ISO/IEC 11801 and TIA/EIA
- Approved latch lock system
- Mountable from the front of the panel
- Ground panel connection
| Title | NE8FDP-TOP |
| Type | Chassis |
| Connection Type | etherCON |
| Gender | female |
| Electrical | |
| Contact resistance | < 10 m½ |
| Dielectric strength | 1 kVdc |
| Frequency range | 1 - 100 MHz |
| Insulation resistance | > 0.5 G½ |
| Rated current per contact | 1.5 A |
| Rated voltage | < 50 V |
| Transmission performance | CAT 5e |
| Mechanical | |
| Insertion force | ² 20 N |
| Withdrawal force | ² 20 N |
| Lifetime | 1000 mating cycles |
| Panel thickness | 2 mm - 4 mm , 0.08" - 0.16" |
| Wiring | Feedthrough |
| Locking device | Latch lock |
| Chassis shape | D |
| Material | |
| Contact plating | 0.2 µm Au over Ni plating |
| Contacts | Bronze (CuSn8) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Chromium |
| Environmental | |
| Flammability | UL 94 V-0 |
| Standard compliance | TIA/EIA 586B, IEC11801 |
| Temperature range | -30 ¡C to +80 ¡C |
| Protection class | IP65, UL50E enclosure type 4 (mated or sealing cap closed) |
