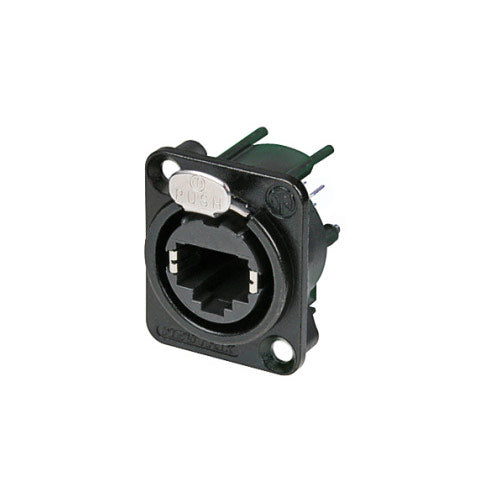

Neutrik NE8FDV-B Chassis Mount etherCON Cat5 Receptacle (Black)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Vertical PCB panel mount RJ45 receptacle, black D-shape metal flange with latch lock, max. panel thickness 4 mm. The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.
Attention! Does not intermate with CAT6 cable connectors.
Features:
- Accommodates NE8MC or any standard RJ45 plug
- Complies with Class D according to TIA / EIA 568B and ISO / IEC 11801 standard
- Approved latch lock system
- Mountable from the front or rear of the panel
- Ground-panel connection
| Gender | female |
| Contact resistance | < 10 m (inner) |
| Dielectric strength | 1 kVdc |
| Frequency range | 1 - 100 MHz |
| Insulation resistance | > 0.5 G |
| Rated current per contact | 1,5 A |
| Rated voltage | < 50 V |
| Transmission performance | Class D |
| Standard compliance | TIA/EIA 586B, IEC11801 |
| Insertion force | 20 N |
| Withdrawal force | 20 N |
| Lifetime | > 1000 mating cycles |
| Panel thickness | max. 4 mm 0.16' |
| Wiring | vertical PCB mount |
| Locking device | Latch lock |
| Chassis shape | D |
| Contact plating | 0.2 µm Au over Ni plating |
| Contacts | Bronze (CuSn8) |
| Insert | PBTP 15 % GR |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Flammability | UL 94 V-0 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80 ¡C |
Vertical PCB panel mount RJ45 receptacle, black D-shape metal flange with latch lock, max. panel thickness 4 mm. The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.
Attention! Does not intermate with CAT6 cable connectors.
Features:
- Accommodates NE8MC or any standard RJ45 plug
- Complies with Class D according to TIA / EIA 568B and ISO / IEC 11801 standard
- Approved latch lock system
- Mountable from the front or rear of the panel
- Ground-panel connection
| Gender | female |
| Contact resistance | < 10 m (inner) |
| Dielectric strength | 1 kVdc |
| Frequency range | 1 - 100 MHz |
| Insulation resistance | > 0.5 G |
| Rated current per contact | 1,5 A |
| Rated voltage | < 50 V |
| Transmission performance | Class D |
| Standard compliance | TIA/EIA 586B, IEC11801 |
| Insertion force | 20 N |
| Withdrawal force | 20 N |
| Lifetime | > 1000 mating cycles |
| Panel thickness | max. 4 mm 0.16' |
| Wiring | vertical PCB mount |
| Locking device | Latch lock |
| Chassis shape | D |
| Contact plating | 0.2 µm Au over Ni plating |
| Contacts | Bronze (CuSn8) |
| Insert | PBTP 15 % GR |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Flammability | UL 94 V-0 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80 ¡C |
