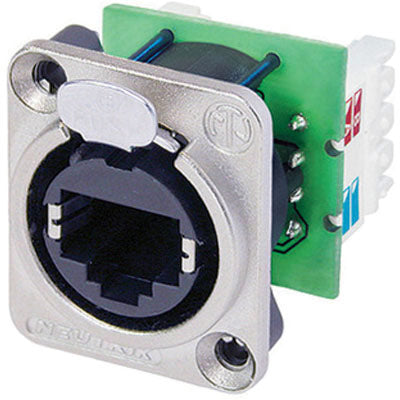

Neutrik NE8FDV-Y110 Ethercon D Series Panel Mount Receptacle - 110 Punchdown - Nickel - with Screws
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Panel mount receptacle with IDC 110 punch down terminals, D-shape metal flange with latch lock, max. panel thickness 4 mm, mounting screws included
The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.
Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
Features:
- Accommodates NE8MC* or any standard RJ45 plug
- Approved latch lock system
- Mountable from the front or rear of the panel
- CAT5e according to ISO/IEC 11801 and TIA/EIA 568A/B
- Selectable ground - panel connection
- Easy and quick mounting using 110 type punch down terminals
- PoE type 3 class 6 (60W) acc. IEEE 802.3bt
| Connector Type | RJ45 |
| Gender | female |
| Electrical | |
| Contact resistance | < 10 mOhms |
| Dielectric strength | 1 kVdc |
| Frequencyrange | 1 - 100 MHz |
| Insulation resistance | > 0.5 GOhms |
| Rated current per contact | 1,5 A |
| Rated voltage | 50 V |
| Transmission performance | CAT 5e |
| Standard compliance | TIA / EIA 568B and ISO / IEC 11801 |
| Mechanical | |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Panel thickness | max. 4 mm 0.16'' |
| Wire size | 0.14 - 0.5 mm_ |
| Wire size | 26 - 20 AWG |
| Wiring | IDC 110 punch down terminals (2 mounting screws included) |
| Locking device | latch lock |
| Mounting direction | front / rear |
| Chassis shape | D |
| Material | |
| Contact plating | 0.2 µm Au over Ni plating |
| Contacts | Bronze (CuSn8) |
| Insert | PBTP 15 % GR |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Strain relief | CuZn35Pb2, Tin plated |
| Environmental | |
| Standard compliance | CAT5e, Class D acc. TIA/EIA 586B, IEC11801, EN 50173 |
| Temperature range | -30 ¡C to +80 ¡C |
