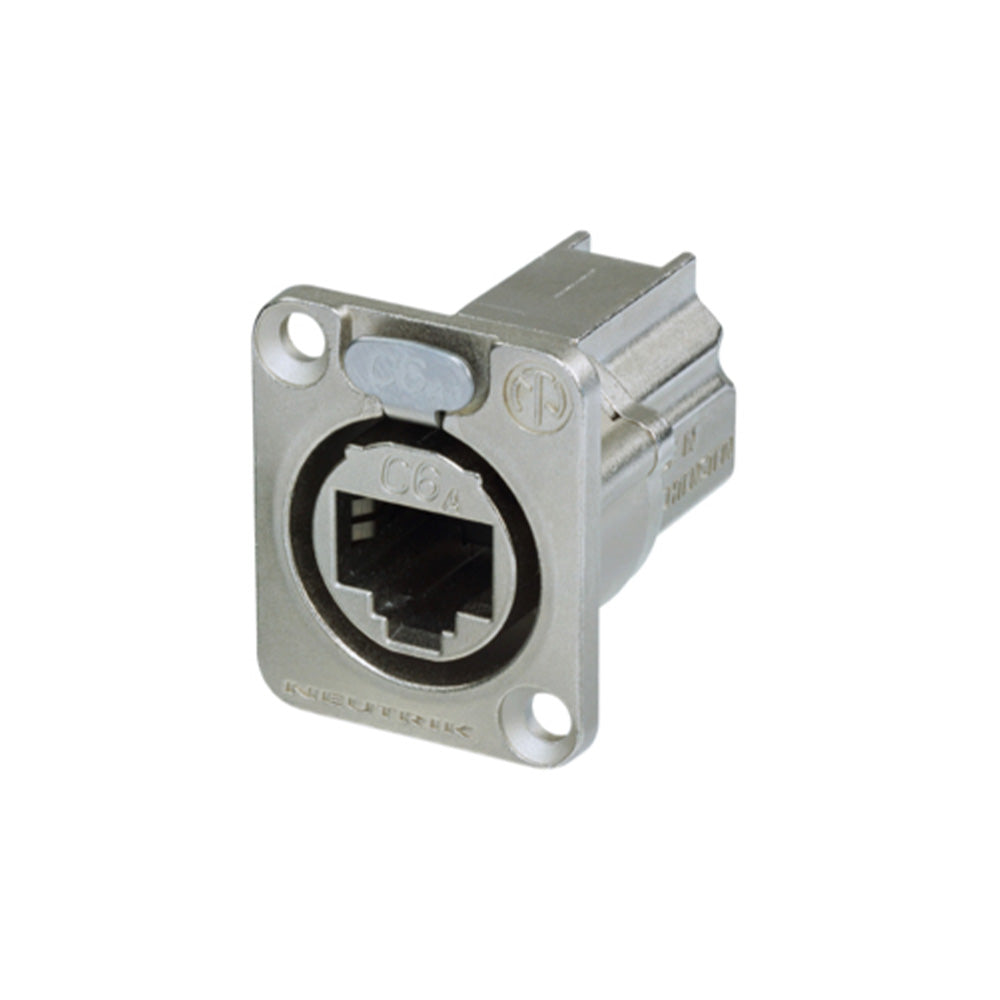

Neutrik NE8FDX-P6 - D Series Cat 6 RJ45 Pass-Through Connector (Nickel)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Neutrik NE8FDX-P6 - D Series Cat 6 RJ45 Pass-Through Connector (Nickel)
Sale price$19.48
Regular price$21.75
Description
D-shape CAT6A panel connector, shielded, feedthrough, Nickel housing
Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
Features:
- Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
- PoE++ compliant according to 802.3bt Type4
- Rugged latch lock system million fold proven
- Intermateable with the existing etherCON CAT5 range
- Shielded system - high noise immunity and EMI protection
| Product | |
| Title | NE8FDX-P6 |
| Gender | female |
| Electrical | |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 0.5 G½ |
| Rated current per contact | 1.5 A |
| Transmission performance | CAT6A, acc. TIA/EIA rating Class EA, acc. IEC/ISO/EN rating |
| Power over Ethernet | PoE++ acc. IEEE 802.3bt |
| Mechanical | |
| Lifetime | > 1000 mating cycles |
| Wiresize | |
| Wiring | Feedthrough |
| Locking device | Latch lock |
| Mounting direction | Front mounting |
| Material | |
| Contact plating | Au |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Environmental | |
| Flammability | UL 94 V-0 |
| Temperature range | -40 ¡C to + 70 ¡C |
