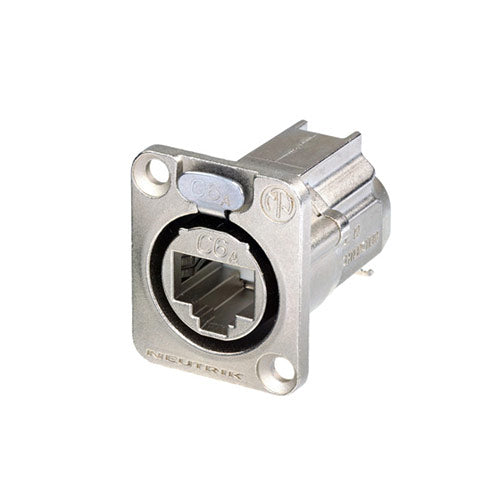

Neutrik NE8FDX-Y6 EtherCON Cat6A D Series Receptacle (Nickel)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Neutrik NE8FDX-Y6 EtherCON Cat6A D Series Receptacle (Nickel)
Sale price$20.24
Regular price$22.60
Description
D-shape CAT6A panel connector, shielded, IDC termination, nickel housing
Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
Features:
- Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
- PoE+ compliant according to 802.3at Type2
- Rugged latch lock system million fold proven
- Intermateable with the existing etherCON CAT5 range
- Shielded system - high noise immunity and EMI protection
| Electrical | |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 0.5 G½ |
| Rated current per contact | 1.5 A |
| Transmission performance | CAT6A, acc. TIA/EIA rating CAT6A, acc. IEC/ISO/EN rating |
| Power over Ethernet | PoE+ acc. IEEE 802.3at |
| Mechanical | |
| Lifetime | > 1000 mating cycles |
| Wiresize | solid: AWG 26/1 - AWG 22/1 stranded: AWG 26/7 - AWG 22/7 |
| Locking device | Latch lock |
| Insulation diameter | 0.85 - 1.6 mm |
| Material | |
| Contact plating | Au |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Environmental | |
| Flammability | UL 94 V-0 |
| Temperature range | -40 ¡C to + 70 ¡C |
