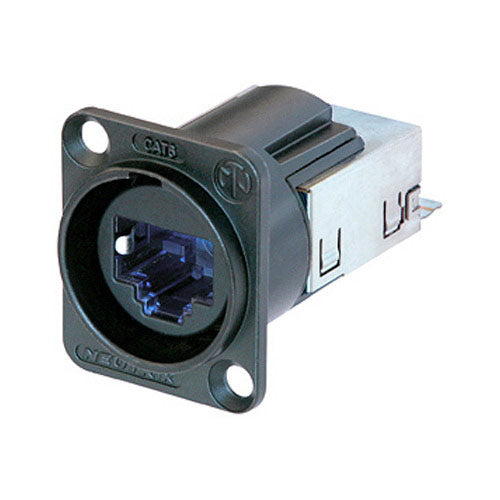

Neutrik NE8FDY-C6-B Ethercon Series CAT6 D-Shape Panel Connector with Black Metal Housing


  • Dale #:

    NEUT-NE8FDYC6B
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The etherCON CAT6 D-shape panel connectors with black metal housing and secure latching system offer a tool-free and gas-tight IDC termination, which makes cable assembly easy and fast. Features: CAT6 compliant - data rate up to 10 GBit/s CAT6 performance - fast data transmission and high bandwi... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The etherCON CAT6 D-shape panel connectors with black metal housing and secure latching system offer a tool-free and gas-tight IDC termination, which makes cable assembly easy and fast.

Features:

  • CAT6 compliant - data rate up to 10 GBit/s
  • CAT6 performance - fast data transmission and high bandwidth applications
  • CAT6 specifications according TIA / EIA 568B, ISO / IEC 11801, EN 50173
  • IP65 - Dust and waterproof in mated condition
  • Shielded system - high noise immunity and EMI protection
  • Push Pull mating - secure and proven locking system
  • Ground lead jumper on panel connector with selectable grounding option
  • Gas-tight IDC termination without tool

More +

Product Specs

Product
Title NE8FDY-C6-B
Connection Type RJ45
Gender female

Electrical
Contact resistance < 10 m (inner)
Dielectric strength 1 kVdc
Frequency range 1 - 250 MHz
Insulation resistance > 0.5 G
Rated current per contact 1,5 A
Rated voltage 50 V
Transmission performance CAT 6
Standard compliance TIA/EIA 586B, IEC11801

Mechanical
Insertion force 40 N
Withdrawal force 20 N
Lifetime > 1000 mating cycles
Panel thickness max. 3 mm 0.12'
Wiresize 0.5 - 0.65 mm²
Wiresize 24 - 22 AWG
Wiring IDC punch down terminals
Locking device Push-Pull
Mounting direction front & rear
Chassis shape D

Material
Contact plating 0.7 µm Au over 1.2 µm Ni plating
Contacts Bronze (CuSn8)
Insert Polycarbonate
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Strain relief Stainless steel

Environmental
Flammability UL 94 HB
Protection class IP 65
Temperature range -10 °C to +60 °C

More +
