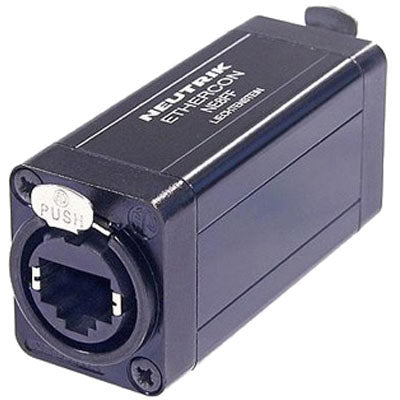

Neutrik NE8FF RJ45 etherCON Feed Through CAT5 Coupler
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Neutrik NE8FF RJ45 etherCON Feed Through CAT5 Coupler
Sale price$21.70
Regular price$24.23
Description
Barrel-style etherCON RJ45 feedthrough coupler for cable extensions.
Features:
- Accommodates NE8MC* or any standard RJ45 plug
- Approved latch lock system
| Product | |
| Title | NE8FF |
| Connection Type | Adapter |
| Gender | female |
| Electrical | |
| Contact resistance | < 10 m (inner) |
| Dielectric strength | 1 kVdc |
| Frequency range | 1 - 100 MHz |
| Insulation resistance | > 0.5 G |
| Rated current per contact | 1,5 A |
| Rated voltage | < 50 V |
| Standard compliance | TIA/EIA 586B, IEC11801 |
| Mechanical | |
| Insertion force | 20 N |
| Withdrawal force | 20 N |
| Lifetime | > 1000 mating cycles |
| Locking device | Latch lock |
| Material | |
| Contact plating | 0.2 µm Au over Ni plating |
| Contacts | Bronze (CuSn8) |
| Insert | PBTP 15 % GR |
| Shell | AlMgSi 0.5, black plated |
| Strain relief | CuZn35Pb2, Tin plated |
| Environmental | |
| Flammability | UL 94 HB |
| Temperature range | -30 ¡C to +80 ¡C |
Barrel-style etherCON RJ45 feedthrough coupler for cable extensions.
Features:
- Accommodates NE8MC* or any standard RJ45 plug
- Approved latch lock system
| Product | |
| Title | NE8FF |
| Connection Type | Adapter |
| Gender | female |
| Electrical | |
| Contact resistance | < 10 m (inner) |
| Dielectric strength | 1 kVdc |
| Frequency range | 1 - 100 MHz |
| Insulation resistance | > 0.5 G |
| Rated current per contact | 1,5 A |
| Rated voltage | < 50 V |
| Standard compliance | TIA/EIA 586B, IEC11801 |
| Mechanical | |
| Insertion force | 20 N |
| Withdrawal force | 20 N |
| Lifetime | > 1000 mating cycles |
| Locking device | Latch lock |
| Material | |
| Contact plating | 0.2 µm Au over Ni plating |
| Contacts | Bronze (CuSn8) |
| Insert | PBTP 15 % GR |
| Shell | AlMgSi 0.5, black plated |
| Strain relief | CuZn35Pb2, Tin plated |
| Environmental | |
| Flammability | UL 94 HB |
| Temperature range | -30 ¡C to +80 ¡C |
