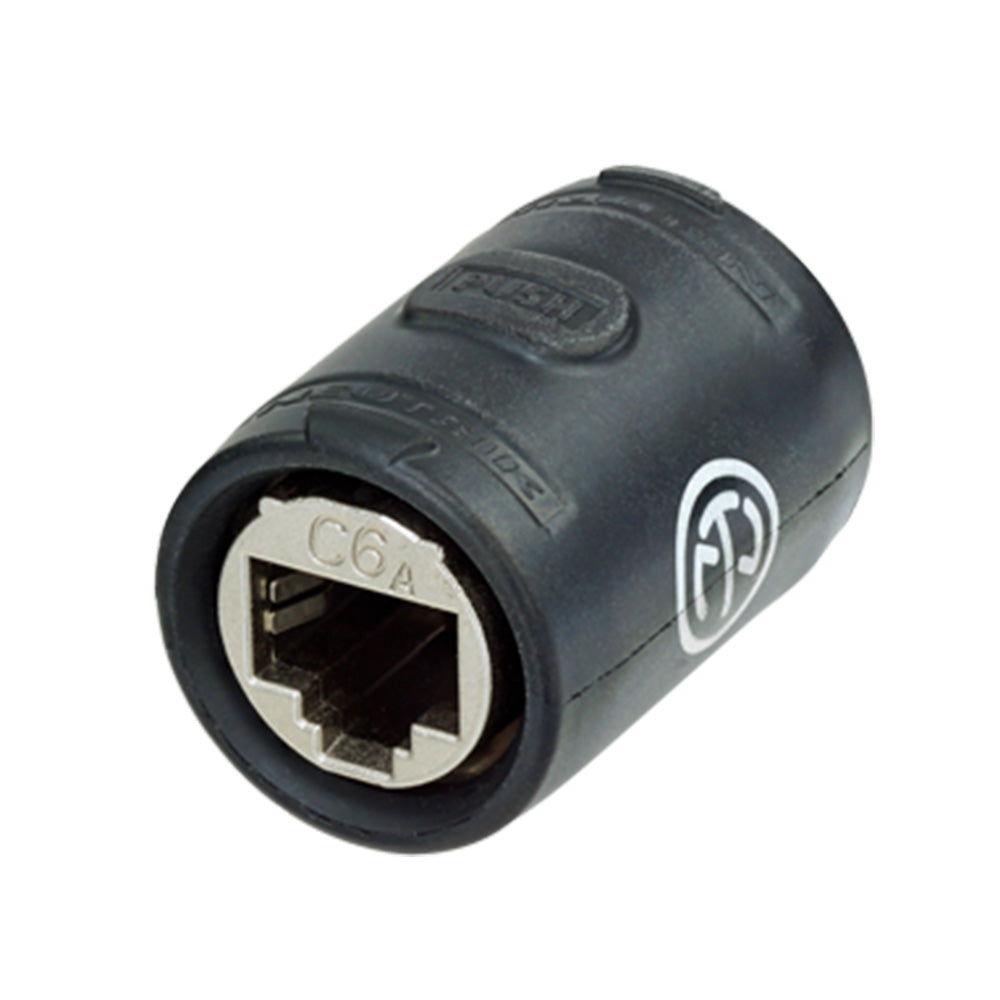

Neutrik NE8FFX6-W etherCON Cat6A RJ45 Coupler
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Neutrik NE8FFX6-W etherCON Cat6A RJ45 Coupler
Sale price$38.22
Regular price$42.68
Description
etherCON CAT6A feedthrough coupler for cable extensions.
Features:
- Ruggedized coupler with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
- IP65 protected when mated with NE8MX6*
- Accommodates standard RJ45 plug
- Revolutionary small form factor
- The adapter offers the million-fold proven robust latch lock system
- The adapters are problem solvers for various intermating problems for professional and semi-professional applications
| Connection Type | Adapter |
| Gender | female |
| Contact resistance | < 200 m½ |
| Dielectric strength | > 1.5 kVdc |
| Insulation resistance | > 0.5 G½ |
| Rated current per contact | 1.5 A |
| Transmission performance | CAT6A, acc. TIA/EIA rating Class EA, acc. IEC/ISO/EN rating |
| Power over Ethernet | PoE+ acc. IEEE 802.3at |
| Insertion force | ² 50 N |
| Withdrawal force | ² 50 N |
| Lifetime | > 1000 mating cycles |
| Wiring | Feedthrough |
| Locking device | Latch lock |
| Contact plating | Au |
| Shell | Rubber (EPDM) |
| Strain relief | CuZn35Pb2, Tin plated |
| Temperature range | - 30 ¡C to + 80 ¡C |
| Protection class | IP65 (in combination with NE8MX*) |
etherCON CAT6A feedthrough coupler for cable extensions.
Features:
- Ruggedized coupler with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
- IP65 protected when mated with NE8MX6*
- Accommodates standard RJ45 plug
- Revolutionary small form factor
- The adapter offers the million-fold proven robust latch lock system
- The adapters are problem solvers for various intermating problems for professional and semi-professional applications
| Connection Type | Adapter |
| Gender | female |
| Contact resistance | < 200 m½ |
| Dielectric strength | > 1.5 kVdc |
| Insulation resistance | > 0.5 G½ |
| Rated current per contact | 1.5 A |
| Transmission performance | CAT6A, acc. TIA/EIA rating Class EA, acc. IEC/ISO/EN rating |
| Power over Ethernet | PoE+ acc. IEEE 802.3at |
| Insertion force | ² 50 N |
| Withdrawal force | ² 50 N |
| Lifetime | > 1000 mating cycles |
| Wiring | Feedthrough |
| Locking device | Latch lock |
| Contact plating | Au |
| Shell | Rubber (EPDM) |
| Strain relief | CuZn35Pb2, Tin plated |
| Temperature range | - 30 ¡C to + 80 ¡C |
| Protection class | IP65 (in combination with NE8MX*) |
