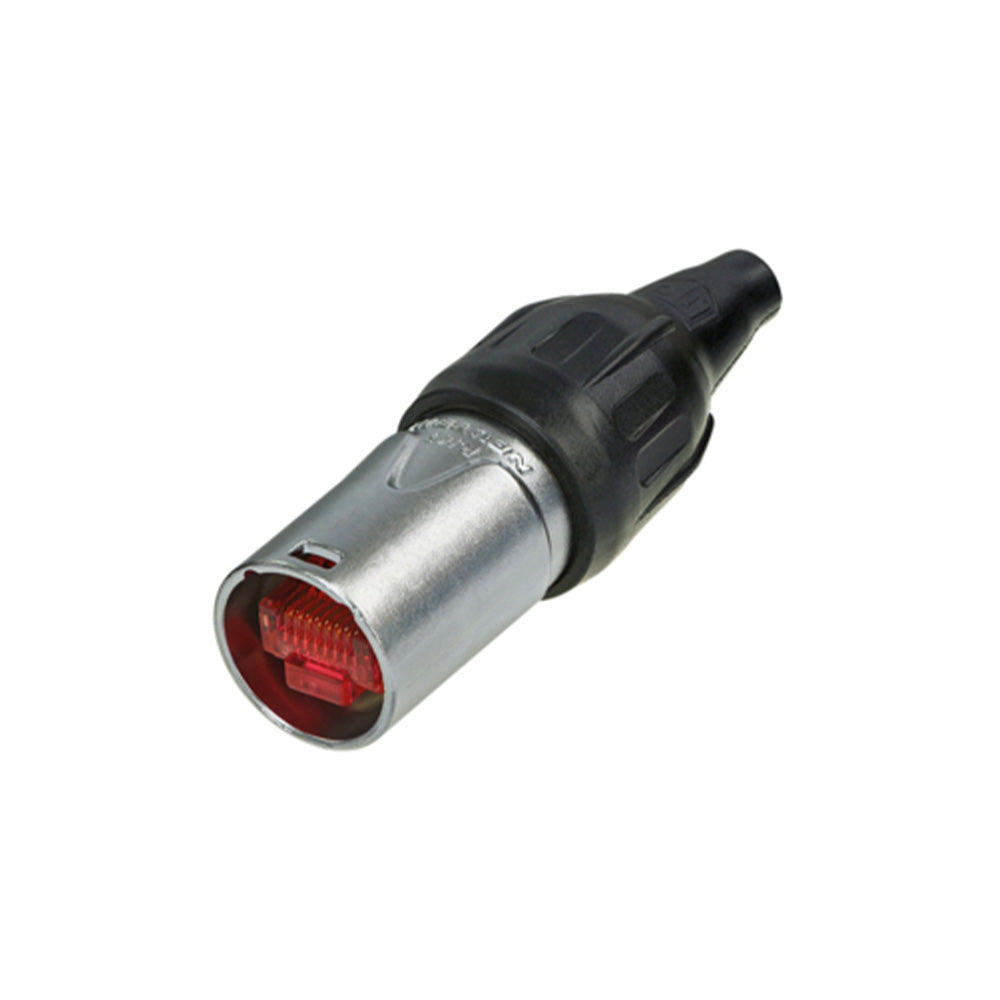

Neutrik NE8MX-TOP - EtherCON Cable Connector (Nickel)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Cable connector carrier consists of a velour chromiuim shell, chuck and boot. The boot is suitable for cable diameters from 5 - 8 mm. For non pre-assembled cables only. Cable connector carrier does not include a RJ45 plug.
The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust, lockable and outdoor protected solution with IP65 rating and UL 50E certification.
ATTENTION: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.
Features:
- The RJ45 system for harsh and demanding environment
- Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
- IP65 rating and certified outdoor protection to UL 50E (in combination with a TOP range counterpart)
- Rugged diecast shell and unique chuck type strain relief
- Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
- Allows assembly of non pre-assembled conventional RJ45 cables
- Accessories include color coded boots in 9 standard colors
| Product | |
| Title | NE8MX-TOP |
| Gender | male |
| IMPORTANT | Cable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end user! |
| Mechanical | |
| Cable O.D. | 5.0 - 8.0 mm |
| Insertion force | ² 20 N |
| Withdrawal force | ² 20 N |
| Lifetime | > 1000 mating cycles |
| Material | |
| Boot | UV-resistant rubber |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Velour Chromium |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Temperature range | -30 ¡C to +80 ¡C |
| Protection class | IP65, UL50E enclosure type 4 (mated) |
Cable connector carrier consists of a velour chromiuim shell, chuck and boot. The boot is suitable for cable diameters from 5 - 8 mm. For non pre-assembled cables only. Cable connector carrier does not include a RJ45 plug.
The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust, lockable and outdoor protected solution with IP65 rating and UL 50E certification.
ATTENTION: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.
Features:
- The RJ45 system for harsh and demanding environment
- Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
- IP65 rating and certified outdoor protection to UL 50E (in combination with a TOP range counterpart)
- Rugged diecast shell and unique chuck type strain relief
- Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
- Allows assembly of non pre-assembled conventional RJ45 cables
- Accessories include color coded boots in 9 standard colors
| Product | |
| Title | NE8MX-TOP |
| Gender | male |
| IMPORTANT | Cable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end user! |
| Mechanical | |
| Cable O.D. | 5.0 - 8.0 mm |
| Insertion force | ² 20 N |
| Withdrawal force | ² 20 N |
| Lifetime | > 1000 mating cycles |
| Material | |
| Boot | UV-resistant rubber |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Velour Chromium |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Temperature range | -30 ¡C to +80 ¡C |
| Protection class | IP65, UL50E enclosure type 4 (mated) |
