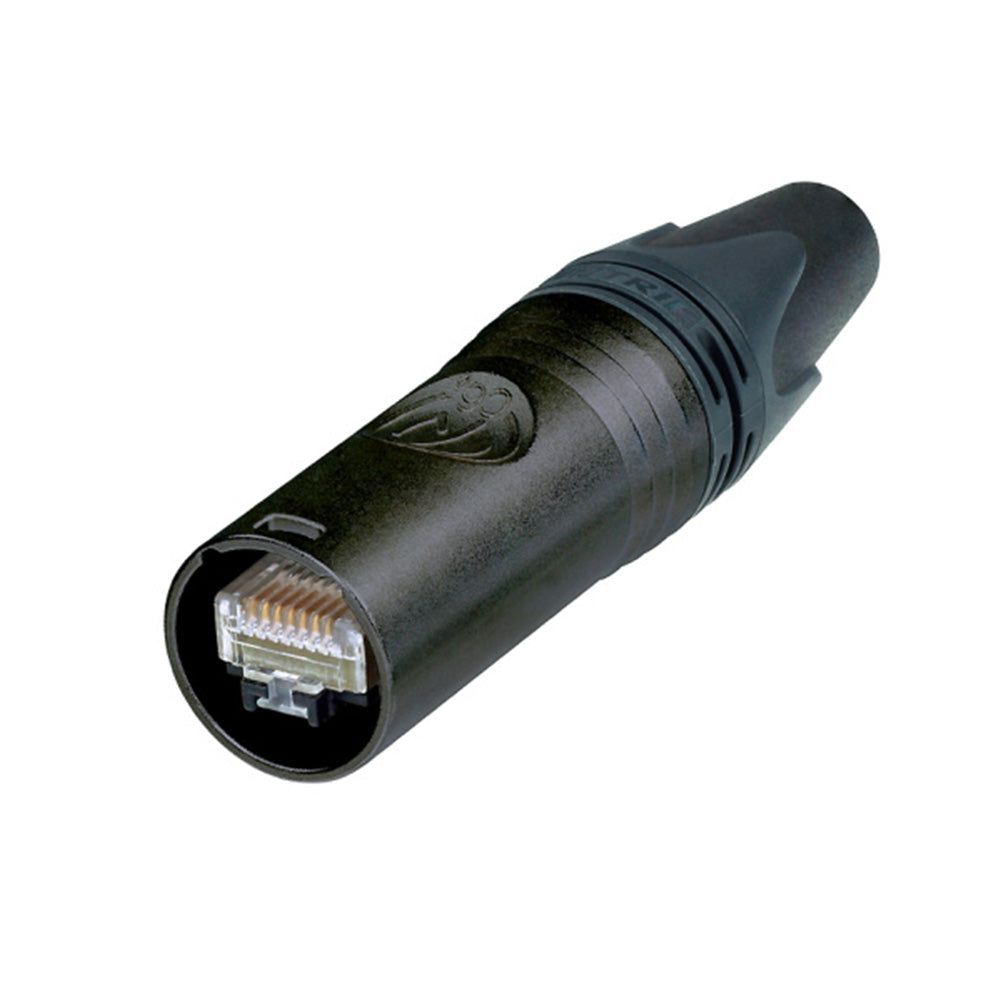

Neutrik NE8MX6-B Self Terminating etherCON Cat6 Connector (Black)


  • Dale #:

    NEUT-NE8MX6B
  • Availability:

    In Stock
  • Available for immediate shipment or pick-up from our Jamaica, NY warehouse. In-store pick-up is available Monday through Friday 8:30 am to 5:30 pm.

Description

etherCON CAT6A cable connector self-termination, for insulation diameter > 1.1 mm, black plating The set NE8MX6-B includes a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A RJ45 plug. The set is suitable for a cable diameter range of 7 mm ... Read More

Free Shipping (orders over $99)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

etherCON CAT6A cable connector self-termination, for insulation diameter > 1.1 mm, black plating

The set NE8MX6-B includes a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and gauge of AWG26/1 - AWG22/1 (solid) or AWG27/7 - AWG22/7 (stranded).

Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Features:

  • Ruggedized connector with CAT6A component compliance according to ISO / IEC 11801 and TIA / EIA 568-C.2
  • PoE+ compliant according to 802.3at Type2
  • IP 65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
  • Rugged latch lock system million fold proven
  • Intermateable with the existing etherCON CAT5 range
  • Unique Neutrik chuck-type strain relief

More +

Product Specs

Gender male
Dielectric strength 1 kVdc
Insulation resistance > 0.5 GΩ
Rated current per contact 1.5 A
Transmission performance CAT6A, acc. TIA/EIA rating
CAT6A, acc. IEC/ISO/EN rating
Power over Ethernet PoE+ acc. IEEE 802.3at
Cable O.D. 7.0 - 9.5 mm
Lifetime > 1000 mating cycles
Locking device Latch lock
Insulation diameter > 1.10 - 1.60 mm
Bushing PA / PU
Contact plating Au
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black
Strain relief POM
Protection class IP 65 (in combination with NE8FDX-*6-W)
Temperature range -40 °C to +70 °C

More +
