Description

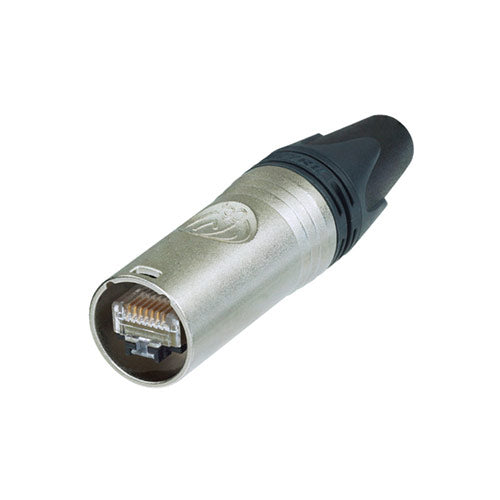

etherCON CAT6A cable connector self-termination, nickel plating
The set NE8MX6 consists of a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A compliant RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG24 - AWG22/1 (solid) or AWG24 - AWG22/7 (stranded).
Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.
Features:
- Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
- PoE+ compliant according to 802.3at Type2
- IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
- Rugged latch lock system million fold proven
- Intermateable with the existing etherCON CAT5 range
- Unique Neutrik chuck-type strain relief
Electrical | |
Dielectric strength | 1 kVdc |
Insulation resistance | > 0.5 G½ |
Rated current per contact | 1.5 A |
Transmission performance | CAT6A, acc. TIA/EIA rating CAT6A, acc. IEC/ISO/EN rating |
Power over Ethernet | PoE+ acc. IEEE 802.3at |
Mechanical | |
Cable O.D. | 7.0 - 9.5 mm |
Lifetime | > 1000 mating cycles |
Wiresize | solid: AWG 24/1 - AWG 22/1 stranded: AWG 24/7 - AWG 22/7 |
Locking device | Latch lock |
Insulation diameter | > 1.10 - 1.60 mm |
Material | |
Bushing | PA / PU |
Contact plating | Au |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell plating | Nickel |
Strain relief | POM |
Environmental | |
Protection class | IP 65 (in combination with NE8FDX-*6-W) |
Temperature range | -40 ¡C to +70 ¡C |
