Neutrik NF2D-B-5 Jacks RCA D Series Style - Green / Black
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Neutrik NF2D-B-5 Jacks RCA D Series Style - Green / Black
Sale price$3.40
Regular price$5.35
Description

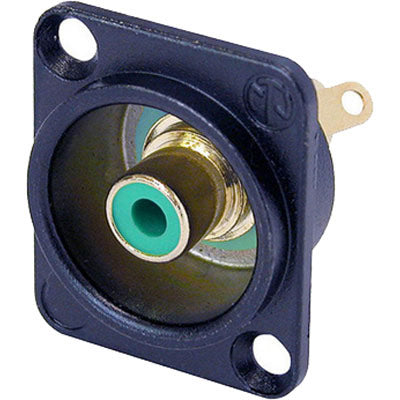

Phono socket in black chrome D-shape housing, green isolation washers, solder version.
| Type | chassis |
| Connector Type | RCA |
| Gender | female |
| Electrical | |
| Capacitance between contacts | ≤ 9ÊpF |
| Dielectric strength | 1.5ÊkVdc |
| Insulation resistance | < 5ÊGΩ |
| Number of electrical contacts | 2 |
| Rated current per contact | 16ÊA |
| Rated voltage | 50ÊV |
| Mechanical | |
| Lifetime | > 2000Êmating cycles |
| Wiring | Solder contacts |
| RW / Straight | no |
| Mounting direction | front |
| Chassis shape | D |
| Material | |
| Contact plating | 5 µm Au over 5 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Labeling | no |
| Environmental | |
| Flammability | UL 94 HB |
| Standard compliance | IEC 601-14 |
| Savety requirements | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30¡C to +80¡CÊ¡C |
Phono socket in black chrome D-shape housing, green isolation washers, solder version.
| Type | chassis |
| Connector Type | RCA |
| Gender | female |
| Electrical | |
| Capacitance between contacts | ≤ 9ÊpF |
| Dielectric strength | 1.5ÊkVdc |
| Insulation resistance | < 5ÊGΩ |
| Number of electrical contacts | 2 |
| Rated current per contact | 16ÊA |
| Rated voltage | 50ÊV |
| Mechanical | |
| Lifetime | > 2000Êmating cycles |
| Wiring | Solder contacts |
| RW / Straight | no |
| Mounting direction | front |
| Chassis shape | D |
| Material | |
| Contact plating | 5 µm Au over 5 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Labeling | no |
| Environmental | |
| Flammability | UL 94 HB |
| Standard compliance | IEC 601-14 |
| Savety requirements | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30¡C to +80¡CÊ¡C |
