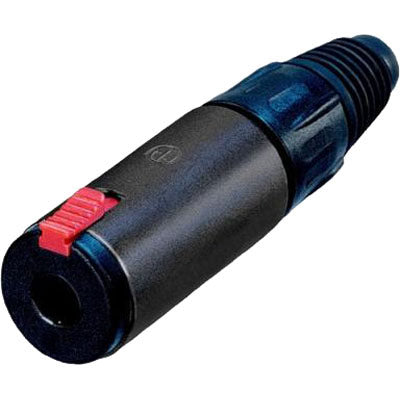

Neutrik NJ3FC6-BAG Locking 1/4" Stereo Cable Connector Black


  • Dale #:

    NEUT-NJ3FC6BAG
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

Professional locking 1/4" cable jack for secure in-line connections. Black metal housing, silver contacts, excellent cable protectionThe 3 pole phone cable jack in-line version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with sta... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Professional locking 1/4" cable jack for secure in-line connections. Black metal housing, silver contacts, excellent cable protection

The 3 pole phone cable jack in-line version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab.

Features & Benefits

  • Securely locking cable jack
  • Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
  • Metal shell makes it extremely robust and reliable
  • Neutrik cable retention and boot as on XLR connectors
  • Solder terminals
  • Colored boots available in 10 colors for color coding and marking

More +

Product Specs

Product
Connector TypeJack
Genderfemale
Electrical
Contact resistance < 6 mΩ (initial)
Dielectric strength 1 kVdc
Insulation resistance≥ 1 GΩ @ 500 V dc
Rated current per contact10 A
Mechanical
Cable O.D.3.5 - 8.0 mm
Insertion force< 20 N
Withdrawal force< 20 N
Lifetime> 10000 mating cycles
Locking force> 80 N
Wire size1 mm²
Wire size18 AWG
WiringSolder contacts
Locking devicelatch lock
Material
BootPolyuretan
BushingPolyamide (PA6 15% GR)
Contact plating2 µm Ag
ContactsBronze (CuBe2)
ContactsBrass (CuZn37) (Ground)
InsertPolyamide (PA 6.6 30 % GR)
ShellZinc diecast (ZnAl4Cu1)
Shell platingBlack
Strain reliefPolyacetal (POM)
Environmental
Standard complianceEIA RS 453, IEC 60603-11
SolderabilityComplies with IEC 68-2-20
Temperature range-25 °C to +70 °C

More +
