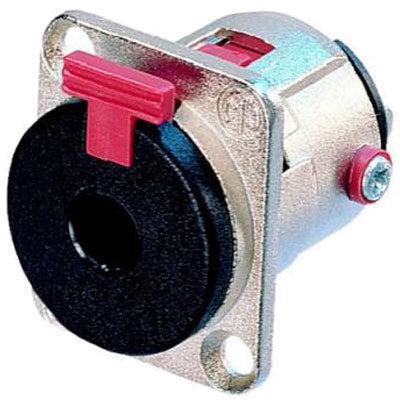

Neutrik NJ3FP6C 1/4" Stereo Locking Female D Style
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Locking 1/4" phone jack, D-size shell, nickel metal housing and silver contacts
The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options.
Features:
- Securely locking chassis jack
- Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
- Closable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed
- Dimensionally compatible with D Series (31 x 26 mm)
- Solder terminals
| Product | |
| Connector Type | Jack |
| Gender | female |
| Electrical | |
| Contact resistance | < 6ÊmΩÊ(initial) |
| Dielectric strength | 1ÊkVdc |
| Insulation resistance | ≥ 1ÊGΩÊ@ 500 V dc |
| Rated current per contact | 10ÊA |
| Mechanical | |
| Insertion force | < 20ÊN |
| Withdrawal force | < 20ÊN |
| Lifetime | > 10000Êmating cycles |
| Locking force | > 80ÊN |
| Wire size | 1Êmm_ |
| Wire size | 18ÊAWG |
| Wiring | Solder contacts |
| Locking device | latch lock |
| Mounting direction | front |
| Chassis shape | D |
| Material | |
| Contact plating | 2 µm Ag |
| Contacts | Bronze (CuBe2) |
| Contacts | Brass (CuZn37)Ê(Ground) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Standard compliance | EIA RS 453, IEC 60603-11 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -25 ¡C to +70Ê¡C |
Locking 1/4" phone jack, D-size shell, nickel metal housing and silver contacts
The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options.
Features:
- Securely locking chassis jack
- Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
- Closable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed
- Dimensionally compatible with D Series (31 x 26 mm)
- Solder terminals
| Product | |
| Connector Type | Jack |
| Gender | female |
| Electrical | |
| Contact resistance | < 6ÊmΩÊ(initial) |
| Dielectric strength | 1ÊkVdc |
| Insulation resistance | ≥ 1ÊGΩÊ@ 500 V dc |
| Rated current per contact | 10ÊA |
| Mechanical | |
| Insertion force | < 20ÊN |
| Withdrawal force | < 20ÊN |
| Lifetime | > 10000Êmating cycles |
| Locking force | > 80ÊN |
| Wire size | 1Êmm_ |
| Wire size | 18ÊAWG |
| Wiring | Solder contacts |
| Locking device | latch lock |
| Mounting direction | front |
| Chassis shape | D |
| Material | |
| Contact plating | 2 µm Ag |
| Contacts | Bronze (CuBe2) |
| Contacts | Brass (CuZn37)Ê(Ground) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Standard compliance | EIA RS 453, IEC 60603-11 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -25 ¡C to +70Ê¡C |
