Neutrik NJ3FP6C-B 1/4" Stereo Locking D Style Black/Gold


  • Dale #:

    NEUT-NJ3FP6CB
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm

Description

Locking 1/4" phone jack, D-size shell, black metal housing and gold contactsThe 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatic... Read More

Free Shipping (orders over $75)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

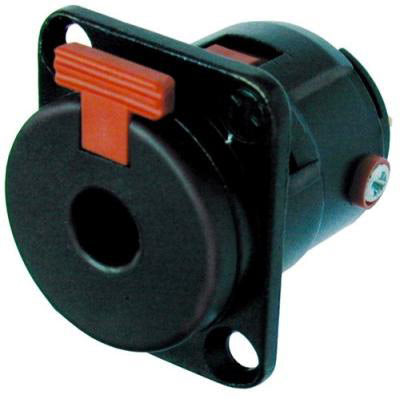

Locking 1/4" phone jack, D-size shell, black metal housing and gold contacts

The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options.

Features:

  • Securely locking chassis jack
  • Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
  • Closable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed
  • Dimensionally compatible with D Series (31 x 26 mm)
  • Solder terminals

More +

Product Specs

Product
Connector TypeJack
Genderfemale
Electrical
Contact resistance < 6 mΩ (initial)
Dielectric strength 1 kVdc
Insulation resistance≥ 1 GΩ @ 500 V dc
Rated current per contact10 A
Mechanical
Insertion force< 20 N
Withdrawal force< 20 N
Lifetime> 10000 mating cycles
Locking force> 80 N
Wire size1 mm²
Wire size18 AWG
WiringSolder contacts
Locking devicelatch lock
Mounting directionfront
Chassis shapeD
Material
Contact plating0.2 µm Au
ContactsBronze (CuBe2)
ContactsBrass (CuZn37) (Ground)
InsertPolyamide (PA 6.6 30 % GR)
ShellZinc diecast (ZnAl4Cu1)
Shell platingBlack
Strain reliefPolyacetal (POM)
Environmental
Standard complianceEIA RS 453, IEC 60603-11
SolderabilityComplies with IEC 68-2-20
Temperature range-25 °C to +70 °C

More +
