Neutrik NJ3FP6P-BAG D Series 1/4" Stereo Locking Connector (Black/Silver Contacts)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

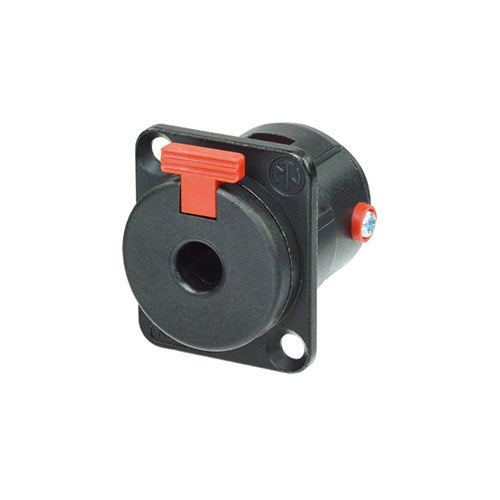

Locking 1/4" phone jack, D-size shell, black plastic housing and silver contacts. The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options.
Features:
- Securely locking chassis jack
- Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
- Selectable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed
- Dimensionally compatible with D Series (31 x 26 mm)
- Solder terminals
| Connection Type | Jack |
| Gender | female |
| Electrical | |
| Contact resistance | < 6 m½ (initial) |
| Dielectric strength | 1 kVdc |
| Insulation resistance | ³ 1 G½ @ 500 V dc |
| Rated current per contact | 10 A |
| Mechanical | |
| Insertion force | < 20 N |
| Withdrawal force | < 20 N |
| Lifetime | > 10000 mating cycles |
| Locking force | > 80 N |
| Wiresize | 1 mm_ |
| Wiresize | 18 AWG |
| Wiring | Solder contacts |
| Locking device | Retention spring |
| Mounting direction | front |
| Chassis shape | D |
| Material | |
| Contact plating | 2 µm Ag |
| Contacts | Brass (CuZn37) (Ground) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Polyamide (PA 6.6 30 % GR) |
| Shell plating | Black plastic |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Standard compliance | EIA RS 453, IEC 60603-11 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -25 ¡C to +70 ¡C |
