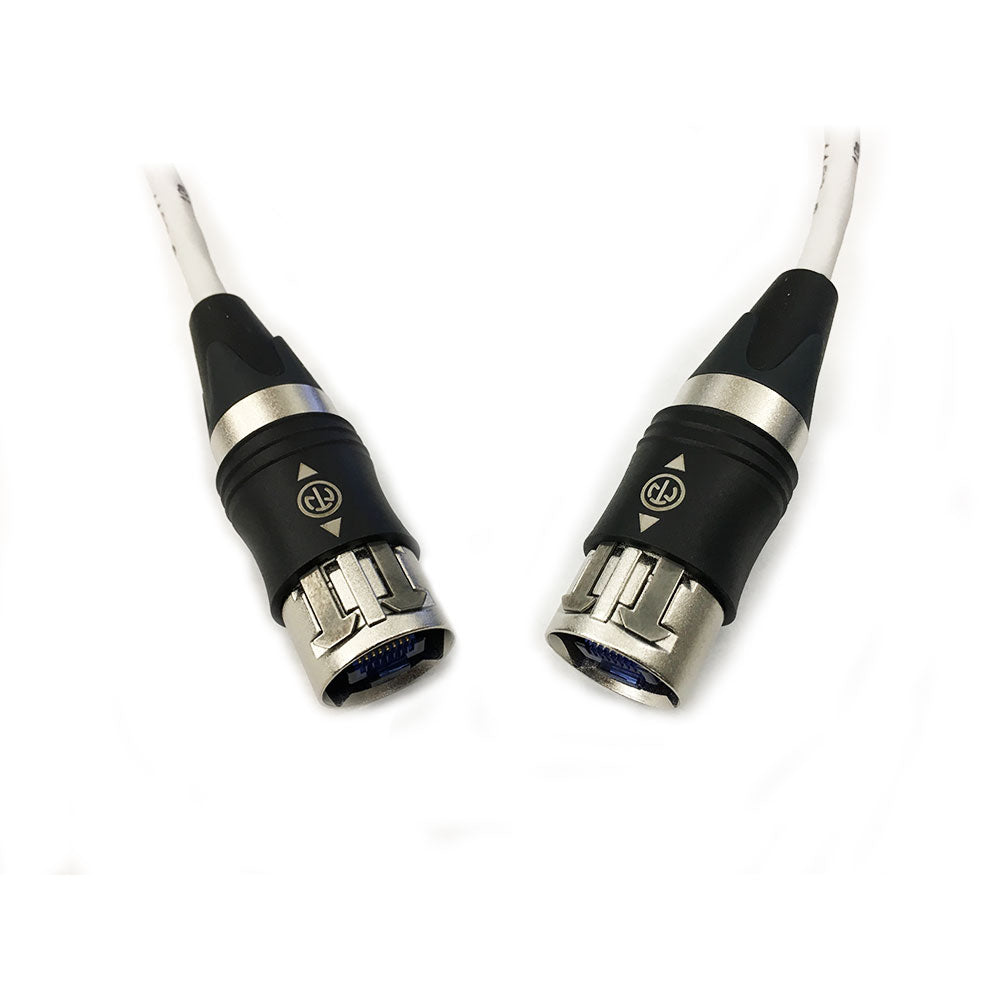

Neutrik NKE6S-10 Cat6 etherCON to etherCON Patch Cable (10 Meter)


  • Dale #:

    NEUT-NKE6S10
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The preassembled etherCON CAT6 patch cables use a shielded S/FTP cable with cable plug carrier offering a robust metal shell and Push-Pull locking system. Attention! Intermates ONLY with NE8FDY-C6* Cat 6 receptacles. Not compatible with CAT5 and CAT6A chassis connectors. Features: CAT6 com... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The preassembled etherCON CAT6 patch cables use a shielded S/FTP cable with cable plug carrier offering a robust metal shell and Push-Pull locking system.

Attention! Intermates ONLY with NE8FDY-C6* Cat 6 receptacles. Not compatible with CAT5 and CAT6A chassis connectors.

Features:

  • CAT6 compliant - data rate up to 10 GBit/s
  • CAT6 performance - fast data transmission and high bandwidth applications
  • CAT6 specifications according TIA / EIA 568B, ISO / IEC 11801, EN 50173
  • IP65 - Dust and waterproof in mated condition
  • Shielded system - high noise immunity and EMI protection
  • Push Pull mating - secure and proven locking system
  • Ready made patch cables with rugged cable carrier and unique chuck-type strain relief

More +

Product Specs

Title NKE6S-*
Gender male
Electrical
Contact resistance < 10 mΩ
Dielectric strength 1 kVdc
Frequencyrange 1 - 250 MHz
Insulation resistance ≥ 0.5 GΩ
Rated current per contact 1,5 A
Rated voltage < 50 V
Mechanical
Insertion force ≤ 40 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize 8 x AWG 27/7 mm²
Locking device Push-Pull
Material
Boot Polyurethan
Contact plating 0.7 µm Au over 1.2 µm Ni plating
Contacts Bronze (CuSn8)
Insert Polyamide (PA 6.6 30 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 HB
Standard compliance CAT6, Class E acc. TIA/EIA 586B, IEC11801, EN 50173
Protection class IP 65
Temperature range -10 °C to +60 °C

More +
